| Application | : | Flow |
| Display Type | : | None |
| Field Programmable | : | Yes |
| Fitting Material | : | Brass | Polymer |
| Fitting Size | : | 1.5" to 10" |
| Flow Measurement Accuracy | : | ±2% |
| Flow Measurement Range | : | 1 - 20 ft/s (0.3 - 6 m/s) |
| Flow Measurement Repeatability | : | ±0.5% |
| Flow Sensor Type | : | Impeller |
| Hot-Tap Option | : | No |
| Measurement Type | : | Flow |
| Medium | : | Water based liquids |
| O-Ring Type | : | Viton (Standard) |
| Operating Fluid Temperature | : | 14 - 150 °F (-10 - 65 °C) |
| Operating Temperature | : | 14 - 150 °F (-10 - 65 °C) |
| Outputs | : | Scaled Pulse output |
| Pipe Material | : | Copper | Polymer | Steel | Stainless Steel |
| Product Type | : | Sensor |
| Range | : | SDI Series |
| Shaft Material | : | Tungsten Carbide (Standard) |
| Warranty | : | 1 year |

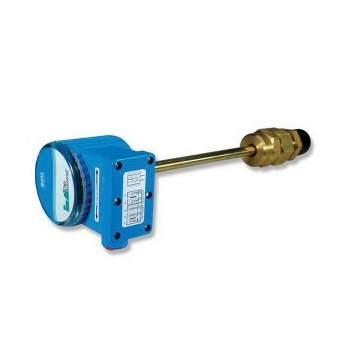

The direct insert style liquid flow sensor with stainless steel/PPS plastic tip combines flow sensing with a built-in transmitter for an all in one flow measuring system. This device fits all 1-1/2 to over 36 in pipes, and it is intended for direct installation into the pipe through a 1 in NPT hole.
- NEMA 4 housing - rugged and weather-proof
- Viton O-ring, tungsten carbide (standard) shaft, stainless steel impeller, torlon bearing
- 0.5 psi or less at 10 fps for all pipe sizes 1-1/2 in diameter and up
