Flexible 36" needlepoint bipolar ionization system, 3200CFM/8 Ton, PTAC applications.
| Air Capacity | : | 3200 CFM / 8 tons per unit. Multiple units can be used to meet airflow requirements. |
| Effective Length | : | 36" Emitter Ribbon |
| Input Frequency Range | : | 50/60 Hz |
| Input Power | : | 110 to 240 Vac |
| Ion Output | : | >35 million ions/sec per foot |
| Operating Temperature | : | -40 to 140 °F (-40 to 60 °C) |
| Power Consumption | : | 5 Watts |
| Relay Contact Ratings | : | 250 Vac / 1A, N.O. (close when powered with no faults) |

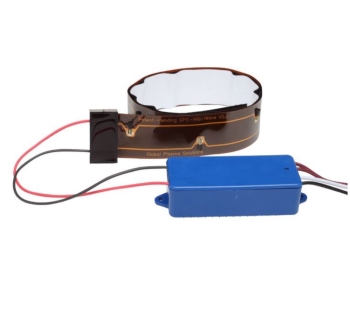

The GPS-iRIB is a highly versatile device designed to be installed on the coiling coil of ductless systems or PTACs. The units can be installed on systems where there may not be enough room between the filter and the coil for traditional GPS products. The unit comes with adhesive-backed hook and loop tape for ease of installation.
