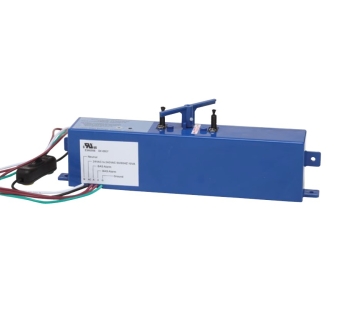

The GPS-FC48-AC is an auto-cleaning, needlepoint bipolar ionization system designed to handle up to 4,800 CFM. The unit is designed for multiple mounting options including fan inlet, interior duct wall or interior duct floor.
| Air Capacity | : | 4800 CFM / 12 tons per unit. Multiple units can be used to meet airflow requirements. |
| Display | : | Single LED indicates relay status and is used for adjustment of auto-cleaning frequency |
| Input Frequency Range | : | 50/60 Hz |
| Input Power | : | 24 to 240 Vac |
| Ion Output | : | >400 million ions/sec |
| Operating Temperature | : | -20 to 200 °F (-29 to 93 °C) |
| Power Consumption | : | 10 Watts |
| Relay Contact Ratings | : | 250 Vac / 1A, N.O. (close when powered with no faults) |
Universal voltage input, in-line On/Off switch, programmable autocleaning cycle, operation status LED, integral Building Automation System (BAS) alarm contacts, magnets for ease of installation and replaceable carbon fiber brush emitters.
