| Application | : | Building Automation Systems |
| Current Measurement Accuracy | : | ±0.5 A |
| Current Measurement Range | : | 0 - 100 A |
| Current Sensor type | : | Current Transducer, DC |
| Electrical Wiring Size | : | 24 - 14 AWG (0.2 - 2.1 mm²) |
| Measurement Type | : | DC Current |

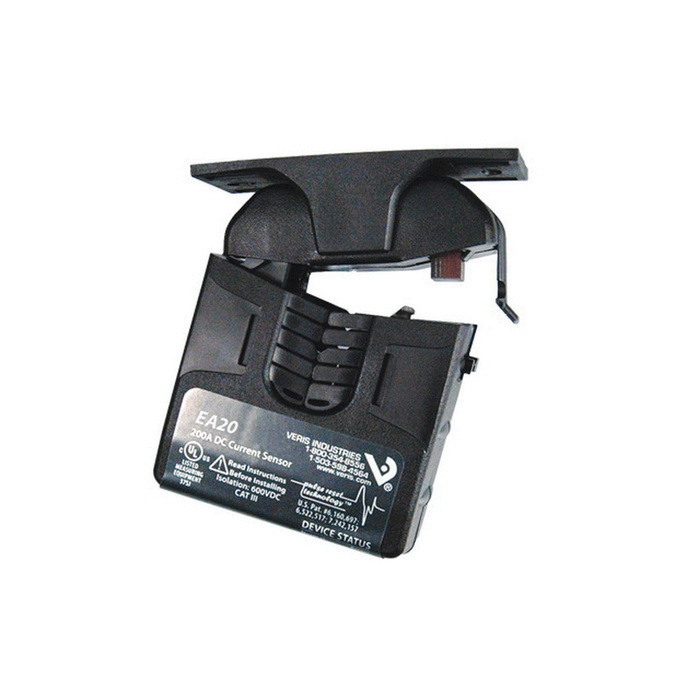

| Model | : | EA20BB010 |
| Monitored Wire Size | : | 0.8" (21 mm) |
| Mounting | : | Split Core |
| Operating Humidity | : | 10 - 90% RH, non-condensing |
| Operating Temperature | : | -22 - 140 °F (-30 - 60 °C) |
| Output Specifications | : | 4 - 20 mA |
| Outputs | : | Analog output |
| Product Certification | : | UL | CE |
| Product Type | : | Sensor |
| Range | : | DC Series |
| Relay Coil Voltage | : | None |
| Relay Contact Ratings | : | None |
| Relay Poles/Throw | : | None |
| Warranty | : | 5 years |
The EA20 use Pulse Reset Technology with field proven circuitry to provide a superior solution for DC applications with minimal risk of permanent magnetization, providing longer life and better accuracy. The EA20 have 4 to 20 mA output only.
- Retrofit - self-gripping iris for easy installation
- Flexibility - bracket can be installed in three different configurations
- Patented pulse reset technology significantly increases accuracy, sensor is not affected by stray magnetic fields, minimize magnetization from over current faults
- Status LED ensures proper wiring
