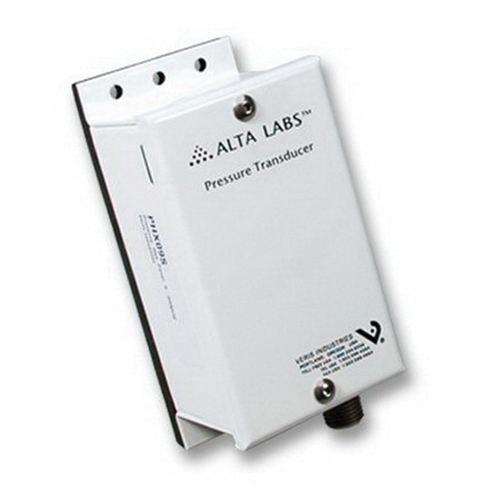

Veris PHX08S Static Pressure Gauge

1% Accuracy Digitally Controlled Gauge Pressure Transducer, 0 to 250 psig

  • Brand Name: Veris
  • Veris Part#: PHX08S
  • Est. Shipping Date: loading
Application Zone      :      Plant Room
Application      :      Pump and Compressor Monitoring | Gas Pressure | Energy and Water Management | Refrigerant Equipment Monitoring
Brand      :      Veris
Burst Pressure      :      1,250 psig (85 bar)
Calibration Certificate      :      No
Dimension Depth      :      2.2" (56 mm)
Dimension Height      :      5.1" (129 mm)
Dimension Width      :      2.5" (56 mm)
Display Type      :      None
Electrical Wiring      :      3-wires
Enclosure Material      :      Powder Coated Steel
Fitting Material      :      Stainless Steel
Fitting Size      :      1/4" NPT
Fitting Type      :      Male
LED Indicator Type      :      Red and Green
Measurement Type      :      Gauge Pressure
Medium      :      Water
Model      :      PHX08S
Mounting      :      Panel
Operating Humidity      :      0 - 90% RH, non-condensing
Operating Temperature      :      14 - 130 °F (-10 - 55 °C)
Output Specifications      :      4 - 20 mA | 0 - 5 V | 0 - 10 V
Outputs      :      Analog output
Pressure Measurement Accuracy      :      ±1% of F.S.
Pressure Measurement Range      :      0 - 250 psi (0 - 17 bar)
Product Type      :      Sensor
Range      :      PH
Supply Voltage AC Nominal      :      24 VAC
Warranty      :      5 years

The PH series pressure transducers are designed for steam, air, gas and liquid pressure measurement in all media compatible with 17-4PH N8 stainless steel. They utilize a microprocessor controlled sensor profiled for exceptional accuracy and reliability. All models feature three switch selectable ranges and a test mode to verify wiring and panel input scaling. A pushbutton and digital input terminal is used to automatically zero the output, and the microprocessor guards against accidental zero adjustment during operation. Jumper controlled surge damping is provided on all models to reduce false alarms.

  • Micromachined silicon sensor design, improves overpressure capacity and reduces failures
  • Electronic surge damping for high stability
  • Pushbutton zero calibration, no trim pots to adjust, saves installation time
  • Pushbutton and remote zero adjustment, maintain accuracy and prevent callbacks with automatic zero calibration
  • Microprocessor controlled signal conditioning
  • Electronic, 5 s averaging surge damping
  • Overrides output to full scale (20 mA, 5 V, 10 V) test mode
  • Pushbutton auto-zero and digital input (2-position terminal block) zero adjust
  • Dual-color LED: green = normal, red = over range, flashing red = fault
  • Media compatible with 17 to 4 PH stainless steel
  • Maximum 2x full scale range proof pressure
  • Maximum 5x full scale range burst pressure
  • 17 to 4 PH stainless fittings
  • 62.5/125/250 psig switch selectable
