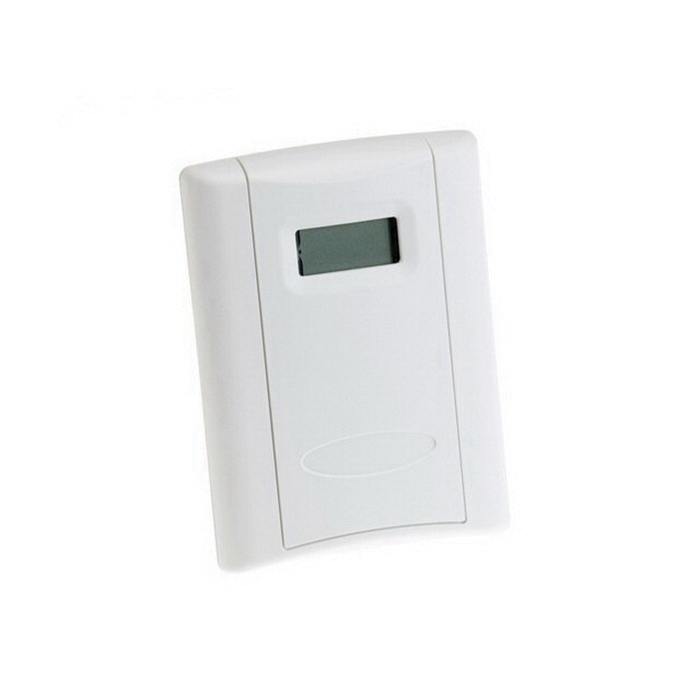

Veris TWLC02 Wall Temperature Sensor

Cloud White ABS Plastic 1 kOhm Platinum RTD PTC Temperature Sensor with LCD Display, 2-Point Calibration

  • Brand Name: Veris
  • Veris Part#: TWLC02
Application Zone      :      Living Space
Application      :      Wall
Brand      :      Veris
Color      :      Cloud White
Dimension Depth      :      1.2" (30 mm)
Dimension Height      :      4.8" (122 mm)
Dimension Width      :      3.5" (89 mm)
Display Size      :      1.2" x 0.6" (30.5 mm x 14 mm)
Display Type      :      LCD
Electrical Wiring Size      :      24 - 18 AWG (0.22 - 0.75 mm²)
Enclosure Material      :      ABS Plastic
Measurement Type      :      Temperature
Model      :      TWLC02
Mounting      :      Wall
Operating Temperature      :      32 - 122 °F (0 - 50 °C)
Outputs      :      Resistive output
Override      :      No
Product Certification      :      CE
Product Type      :      Sensor
Range      :      TW
Setpoint      :      No
Supply Voltage AC Nominal      :      24 VAC
Supply Voltage DC Range      :      12 - 30 VDC
Temperature Calibration Certificate      :      2 pts
Temperature Measurement Accuracy      :      ±0.6 °F (±0.3 °C)
Temperature Measurement Range      :      32 - 122 °F (0 - 50 °C)
Temperature Sensor Type      :      1k Ohm Platinum RTD
Warranty      :      5 years

These wall mounted temperature sensors feature a discreet appearance combined with high accuracy and reliability. Aesthetically pleasing in any interior environment.

  • Wall mount - low-profile housing
  • Quick installation - reduced downtime for deployment
  • 2-point calibration validation
  • Solid-state, integrated circuit transmitter
  • pdf CE Declaration https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/tw-CEDec02081.pdf
  • pdf Datasheet https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/TW_TE_d0117.pdf
  • pdf Installation Guide https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/tw_i0a2.pdf
