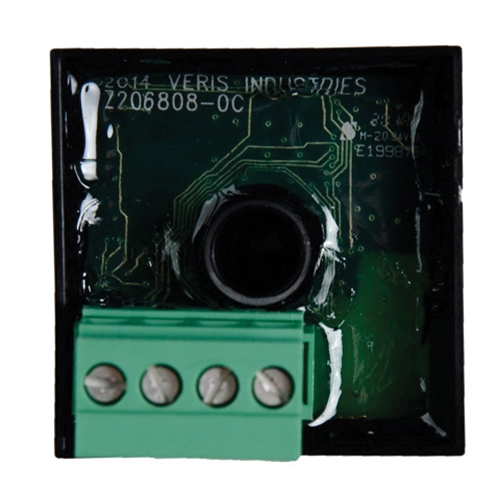

Veris AA10B-20C-5 Temperature Sensor Accessory

100 Ohm Platinum RTD Temperature Transmitter, -20 to -5 deg C

  • Brand Name: Veris
  • Veris Part#: AA10B-20C-5
  • Est. Shipping Date: loading
Application Zone      :      Plant Room
Application      :      Resistive to Analog Converter
Brand      :      Veris
Dimension Depth      :      1.5" (39 mm)
Dimension Height      :      1.5" (39 mm)
Dimension Width      :      1.5" (39 mm)
Electrical Wiring      :      2-wires (loop-powered)
Enclosure Material      :      Epoxy encapsulated
Input Specifications      :      100 Ohm Platinum RTD
Inputs      :      Resistive input
Model      :      AA10B-20C-5
Operating Temperature      :      5 - 122 °F (-15 - 50 °C)
Output Specifications      :      4 - 20 mA
Outputs      :      Analog output
Product Certification      :      CE
Product Type      :      Accessory
Standards      :      RoHS
Supply Voltage DC Range      :      9 - 30 VDC
Temperature Measurement Accuracy      :      ±0.5 °F (±0.3 °C)
Temperature Measurement Range      :      -4 - 41 °F (-20 - 5 °C)
Warranty      :      5 years

The AA10 series temperature-to-current transmitter is designed for use with 100 Ohm platinum RTD 3 external resistive output devices. When the resistive output from the external device is connected to the AA10 input terminal, the resistive value is converted to a 4 to 20 mA signal compatible with most building control systems.

  • Epoxy encapsulated
