| Application Zone | : | Parking Garage | Plant Room | Living Space |
| Application | : | Parking Garage | Space Gas Detection |
| Brand | : | Veris |
| CO Measurement Accuracy | : | ±5% of F.S. |
| Measurement Type | : | CO | NO2 |
| NO2 Measurement Accuracy | : | ±5% of F.S. at 25 °C |
| NO2 Measurement Range | : | 0 - 20 ppm |
| NO2 Measurement Resolution | : | 0.1 ppm |
| NO2 Sensor Type | : | Electrochemical |
| Operating Humidity | : | 0 - 90% RH, non-condensing |
| Operating Temperature | : | -4 - 122 °F (-20 - 50 °C) |
| Product Certification | : | CE | ETL |
| Product Type | : | Sensor Module |
| Range | : | AG for GWN |
| Standards EMC | : | UL 61010-1 |
| Warranty | : | 2 years (from date of manufacture) |

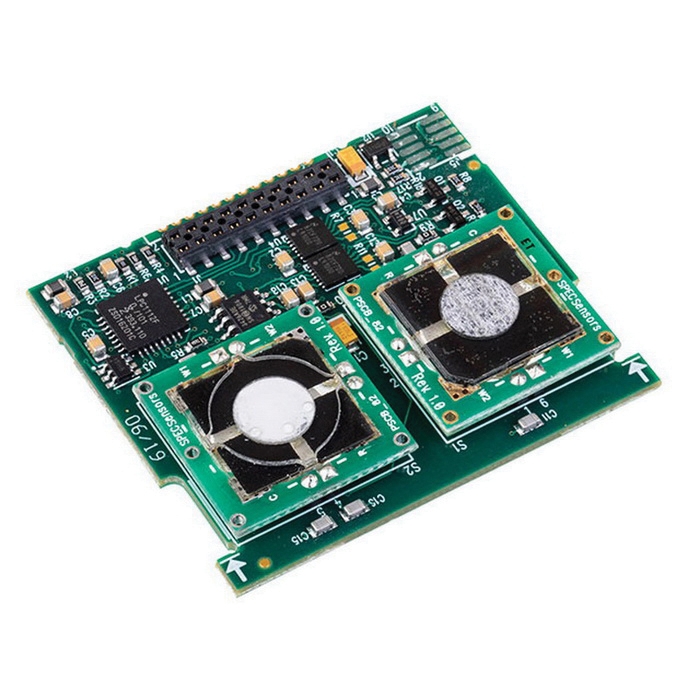

The AG04 carbon monoxide (CO) and nitrogen dioxide (NO2) sensing element is designed to work with the Veris GWNP series (BACnet/Modbus Output) gas platform unit to provide accurate monitoring of CO and NO2 levels. Common sources of CO include automobile exhaust from gasoline engines, gasoline powered furnaces, gasoline powered water heaters, and gasoline generators. Common sources of NO2 include automobile exhaust from diesel engines and diesel powered generators. The sensor is calibrated at the factory, so no field calibration is needed. The AG04 is warranted to meet accuracy specifications for two years after the date of manufacture.
