| Application Zone | : | Living Space |
| Application | : | Wall |
| Brand | : | Veris |
| Dimension Depth | : | 0.5" (13 mm) |
| Dimension Height | : | 3.2" (82 mm) |
| Dimension Width | : | 2.8" (72 mm) |
| Display Type | : | None |
| Electrical Wiring Size | : | 22 AWG (0.32 mm²) |
| Enclosure Material | : | ABS Plastic |
| Measurement Type | : | Temperature |
| Model | : | TED51 |
| Mounting | : | Wall |
| Operating Temperature | : | -13 - 221 °F (-25 - 105 °C) |
| Outputs | : | Resistive output |
| Override | : | Yes |
| Product Certification | : | CE |
| Product Type | : | Sensor |
| Range | : | TE |
| Setpoint | : | Yes |
| Temperature Calibration Certificate | : | 1 pt |
| Temperature Measurement Accuracy | : | ±1.8 °F (±1.0 °C) |
| Temperature Measurement Range | : | -58 - 302 °F (-50 - 150 °C) |
| Temperature Sensor Type | : | 10k Ohm Type 2 Thermistor |
| Warranty | : | 5 years |

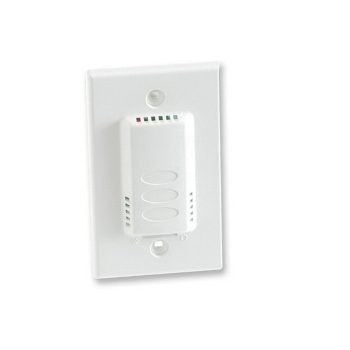

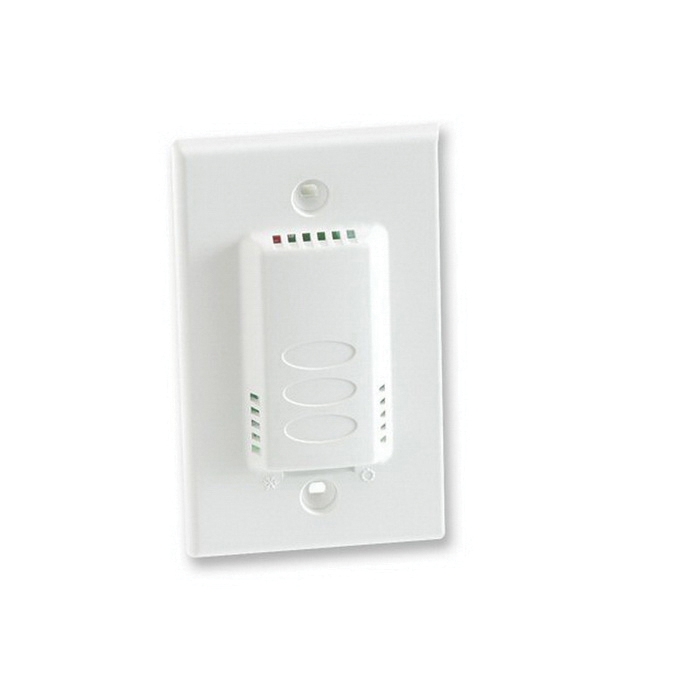

These wall mounted temperature sensors feature a discreet appearance combined with high accuracy and reliability. Aesthetically pleasing in any interior environment.
- Wall mount - low-profile housing
- Quick installation - reduced downtime for deployment
- 10 kOhm setpoint with push button override
- 1-point calibration validation
