| Application Zone | : | Plant Room |
| Application | : | VAV Box |
| Brand | : | Veris |
| Dimension Depth | : | 0.5" (13 mm) |
| Dimension Height | : | 2" (51 mm) |
| Dimension Probe Diameter | : | 0.25" (6 mm) |
| Dimension Probe Length | : | 4" (102 mm) |
| Dimension Width | : | 1.5" (38 mm) |
| Electrical Wiring Size | : | 22 AWG (0.32 mm²) |
| Enclosure Material | : | Stainless Steel |
| Measurement Type | : | Temperature |
| Model | : | TJBDR03 |
| Mounting | : | Duct |
| Operating Temperature | : | -13 - 221 °F (-25 - 105 °C) |
| Outputs | : | Resistive output |
| Product Type | : | Sensor |
| Range | : | TJ |
| Temperature Calibration Certificate | : | 3 pts |
| Temperature Measurement Accuracy | : | ±1.8 °F (±1.0 °C) |
| Temperature Measurement Range | : | -58 - 302 °F (-50 - 150 °C) |
| Temperature Sensor Type | : | 10k Ohm Type 2 Thermistor |
| Warranty | : | 5 years |

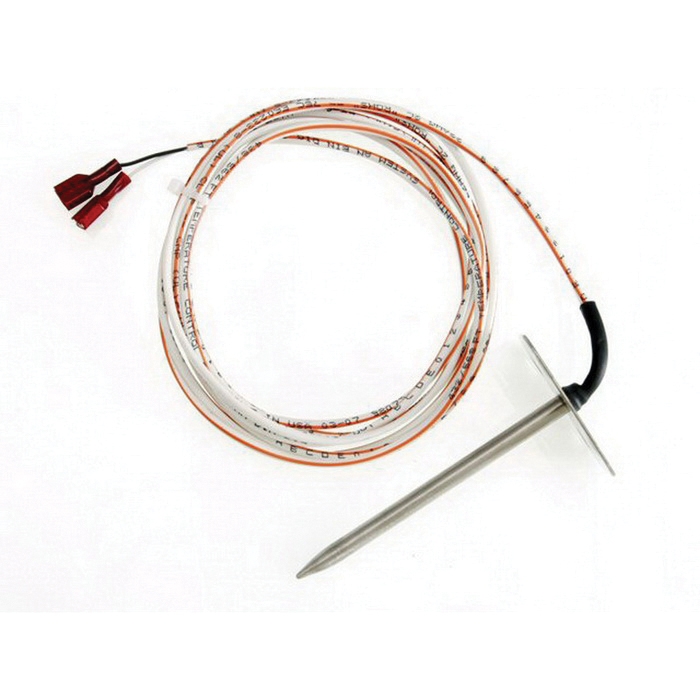

The TJ series temperature sensors are highly accurate and cost effective, with trouble-free installation. The sensor is encased in a sturdy corrosion-resistant stainless steel probe. A variety of RTD/thermistor sensor and probe length options are available for maximum versatility in applications.
- Easy installation - stainless steel duct probe with mounting flange
- Installation ready for VAV systems and plenum areas, saves money on job commissioning and warranty service
- 2-wire installation (optional quick disconnect), installs in minutes
- Plenum rated cable standard
- Application flexibility - 4 in duct probes
- Resistive output
