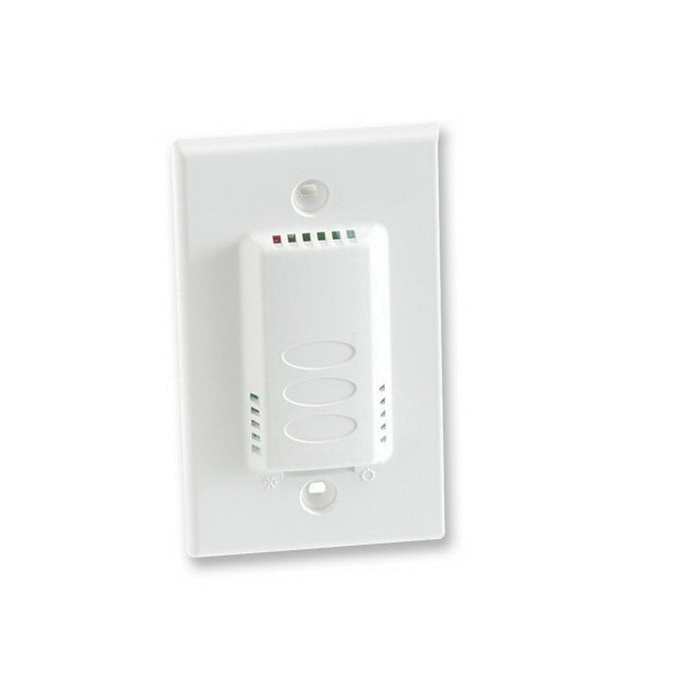

Veris TEC00 Wall Temperature Sensor

Cloud White ABS Plastic 1 kOhm Platinum RTD PTC Temperature Sensor

  • Brand Name: Veris
  • Veris Part#: TEC00
  • Est. Shipping Date: loading
Application Zone      :      Living Space
Application      :      Wall
Brand      :      Veris
Dimension Depth      :      0.5" (13 mm)
Dimension Height      :      3.2" (82 mm)
Dimension Width      :      2.8" (72 mm)
Display Type      :      None
Electrical Wiring Size      :      22 AWG (0.32 mm²)
Enclosure Material      :      ABS Plastic
Measurement Type      :      Temperature
Model      :      TEC00
Mounting      :      Wall
Operating Temperature      :      -13 - 221 °F (-25 - 105 °C)
Outputs      :      Resistive output
Override      :      No
Product Certification      :      CE
Product Type      :      Sensor
Range      :      TE
Setpoint      :      No
Temperature Calibration Certificate      :      None
Temperature Measurement Accuracy      :      ±0.6 °F (±0.3 °C)
Temperature Measurement Range      :      32 - 122 °F (0 - 50 °C)
Temperature Sensor Type      :      1k Ohm Platinum RTD
Warranty      :      5 years

These wall mounted temperature sensors feature a discreet appearance combined with high accuracy and reliability. Aesthetically pleasing in any interior environment.

  • Wall mount - low-profile housing
  • Quick installation - reduced downtime for deployment
  • pdf Datasheet https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/TE_TP_d0722.pdf
  • pdf Installation Guide https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/te_i0v2.pdf
