| Application | : | Building Automation Systems |
| Current Measurement Accuracy | : | ±2% of F.S. above 80 A |
| Current Measurement Range | : | 0 - 800 A |
| Current Sensor type | : | Current Transducer, AC |
| Electrical Wiring Size | : | 22 - 12 AWG (0.33 - 3.3 mm²) |
| Measurement Type | : | AC Current |
| Model | : | H321 |
| Monitored Frequency Range | : | 50 - 60 Hz |
| Monitored Wire Size | : | 2.4" (61 mm) |
| Mounting | : | Split Core |
| Operating Humidity | : | 10 - 90% RH, non-condensing |
| Operating Temperature | : | 5 - 140 °F (-15 - 60 °C) |
| Output Specifications | : | 4 - 20 mA |
| Outputs | : | Analog output |
| Product Certification | : | UL | CE |
| Product Type | : | Sensor |
| Range | : | High Current Series |
| Relay Coil Voltage | : | None |
| Relay Contact Ratings | : | None |
| Relay Poles/Throw | : | None |
| Warranty | : | 5 years |

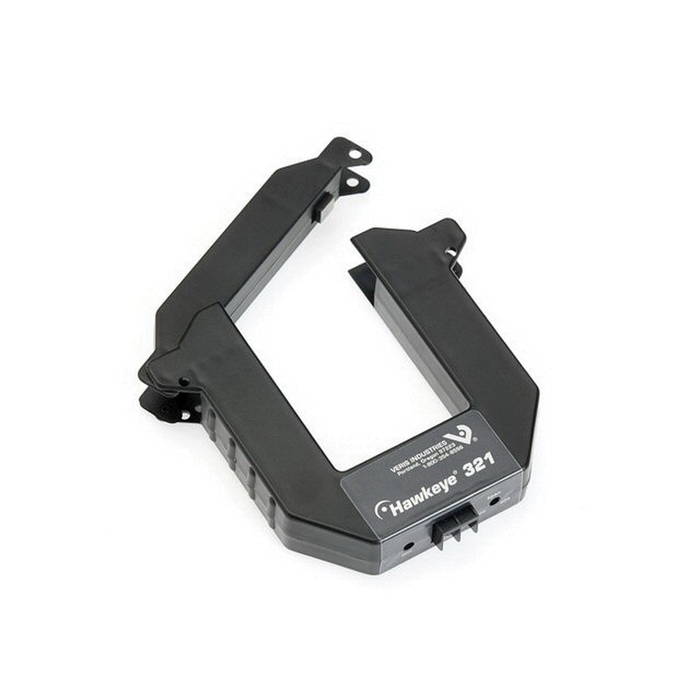

Hawkeye H321 analog current transducers provide reliable load trending information for large motor loads (up to 2400 A), with a proportional 4 to 20 mA signal. The H321 versions include a span potentiometer that allows each sensor to be calibrated for maximum resolution.
- Split-core design for easy installation and fast retrofits
- No need for external CTs on large conductors
- Large openings for heavy conductors
- Loop powered 4 to 20 mA output
- 2-wire design reduces wiring cost
- Zero and span adjustments for field flexibility
- 30 mA at 12 to 30 VDC sensor power
