| Application Zone | : | Plant Room |
| Application | : | Duct |
| Brand | : | Veris |
| Dimension Depth | : | 0.5" (13 mm) |
| Dimension Height | : | 2" (51 mm) |
| Dimension Probe Diameter | : | 0.25" (6 mm) |
| Dimension Probe Length | : | 8" (203 mm) |
| Dimension Width | : | 1.5" (38 mm) |
| Electrical Wiring Size | : | 22 AWG (0.32 mm²) |
| Enclosure Material | : | Stainless Steel |
| Measurement Type | : | Temperature |
| Model | : | TDDBR02 |
| Mounting | : | Duct |
| Operating Temperature | : | -13 - 221 °F (-25 - 105 °C) |
| Outputs | : | Resistive output |
| Product Certification | : | CE |
| Product Type | : | Sensor |
| Range | : | TD |
| Temperature Calibration Certificate | : | 2 pts |
| Temperature Measurement Accuracy | : | ±0.6 °F (±0.3 °C) |
| Temperature Measurement Range | : | 32 - 122 °F (0 - 50 °C) |
| Temperature Sensor Type | : | 100 Ohm Platinum RTD |
| Warranty | : | 5 years |

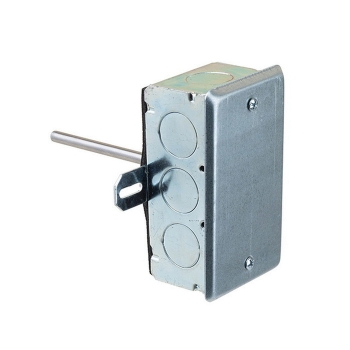

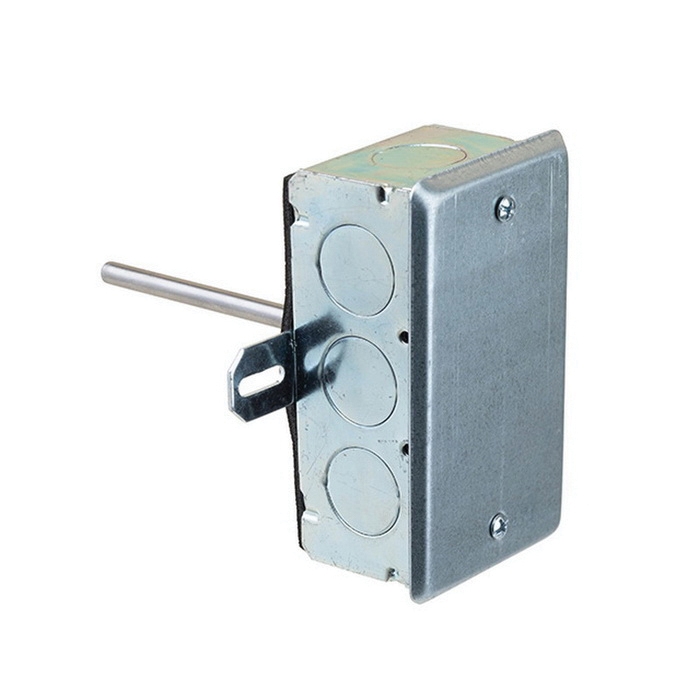

Duct-mount temperature sensors from Veris are pre-calibrated and housed in sturdy stainless steel probes. The devices are easy to install, durable and highly accurate.
- Cost-effective, high accuracy RTDs available with or without a junction box
- Durable - corrosion resistant stainless steel probe design
- No calibration required
- Duct enclosure
- Resistive output
- 2-point calibration validation
- Not suitable for wet locations, for indoor use only
