| Application Zone | : | Living Space |
| Application | : | Hospitals | Labs | Clean Rooms |
| Brand | : | Veris |
| Color | : | Cloud White |
| Dimension Depth | : | Installed: 0.6" (16 mm) | Total: 2.7" (68 mm) |
| Dimension Height | : | 2" (51 mm) |
| Dimension Probe Diameter | : | 3/16" (4.8 mm) |
| Dimension Probe Length | : | 6" (152 mm) |
| Dimension Width | : | 2" (51 mm) |
| Electrical Wiring Size | : | 22 AWG (0.32 mm²) |
| Enclosure Material | : | ABS Plastic |
| Measurement Type | : | Temperature |
| Model | : | TCCD0 |
| Mounting | : | Ceiling |
| Operating Temperature | : | -13 - 221 °F (-25 - 105 °C) |
| Outputs | : | Resistive output |
| Product Type | : | Sensor |
| Range | : | TC |
| Temperature Calibration Certificate | : | None |
| Temperature Measurement Accuracy | : | ±1.8 °F (±1.0 °C) |
| Temperature Measurement Range | : | -58 - 302 °F (-50 - 150 °C) |
| Temperature Sensor Type | : | 10k Ohm Type 2 Thermistor |
| Warranty | : | 5 years |

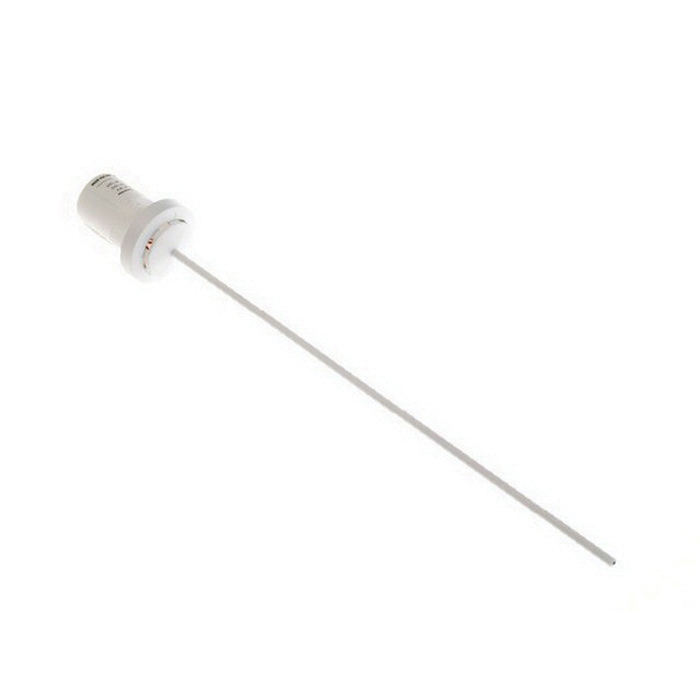

TC sensors are ceiling-mounted in an unobtrusive housing. The easy to install units are ideal for office environments, as well as museums, galleries or any other open indoor setting. These sensors are highly accurate, reliable and come with a 5 years warranty.
- Ceiling mount probe for more accurate readings, ideal for open office environments
- Recessed press-fit sensor virtually disappears, great for museums and galleries
