| Application Zone | : | Plant Room |
| Application | : | Pipe |
| Brand | : | Veris |
| Dimension Depth | : | 1.8" (44 mm) |
| Dimension Height | : | 4.2" (102 mm) |
| Dimension Probe Length | : | 2 - 5" (51 - 127 mm) |
| Dimension Width | : | 2.3" (58 mm) |
| Electrical Wiring Size | : | 22 AWG (0.32 mm²) |
| Enclosure Material | : | Galvanized Steel |
| Measurement Type | : | Temperature |
| Model | : | TBAC0 |
| Mounting | : | Strap-On with Mounting Box |
| Operating Temperature | : | Probe: -13 - 221 °F (-25 - 105 °C) | Wiring: -4 - 176 °F (-20 - 80 °C) |
| Outputs | : | Resistive output |
| Product Type | : | Sensor |
| Range | : | TB |
| Temperature Calibration Certificate | : | None |
| Temperature Measurement Accuracy | : | ±0.6 °F (±0.3 °C) |
| Temperature Measurement Range | : | 32 - 122 °F (0 - 50 °C) |
| Temperature Sensor Type | : | 1k Ohm Platinum RTD |
| Warranty | : | 5 years |

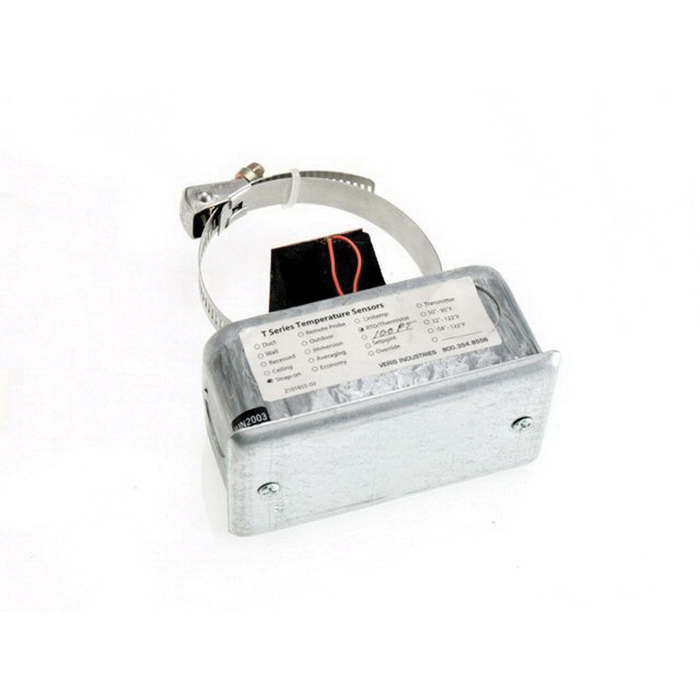

The TB strap-on sensor uses a clamp to secure the unit to a pipe and a copper sensing plate for fast temperature response. The TB is perfect for secondary measurement of water temperature typical in retrofit applications. It includes a steel mounting box for wire termination and easy conduit connection.
- Secondary measurement of water temperature, ideal for retrofit applications
- Pipe clamps allow for easy installation on pipes up to 2-1/2 in Dia
- 2-1/2 in Dia maximum strap-on bracket
