| Application Zone | : | Plant Room |
| Application | : | Chiller | Heat Exchangers |
| Brand | : | Veris |
| Dimension Depth | : | 1.8" (44 mm) |
| Dimension Height | : | 4.2" (102 mm) |
| Dimension Probe Diameter | : | 3/16" (4.8 mm) |
| Dimension Probe Length | : | 12' (3.6 m) |
| Dimension Width | : | 2.3" (58 mm) |
| Electrical Wiring Size | : | 22 AWG (0.32 mm²) |
| Enclosure Material | : | Galvanized Steel |
| Measurement Type | : | Temperature |
| Model | : | TAHC0 |
| Mounting | : | Duct with Mounting Box |
| Operating Temperature | : | -13 - 221 °F (-25 - 105 °C) |
| Outputs | : | Resistive output |
| Product Type | : | Sensor |
| Range | : | TA |
| Temperature Calibration Certificate | : | None |
| Temperature Measurement Accuracy | : | ±0.6 °F (±0.3 °C) |
| Temperature Measurement Range | : | 32 - 122 °F (0 - 50 °C) |
| Temperature Sensor Type | : | 1k Ohm Platinum RTD |
| Warranty | : | 5 years |

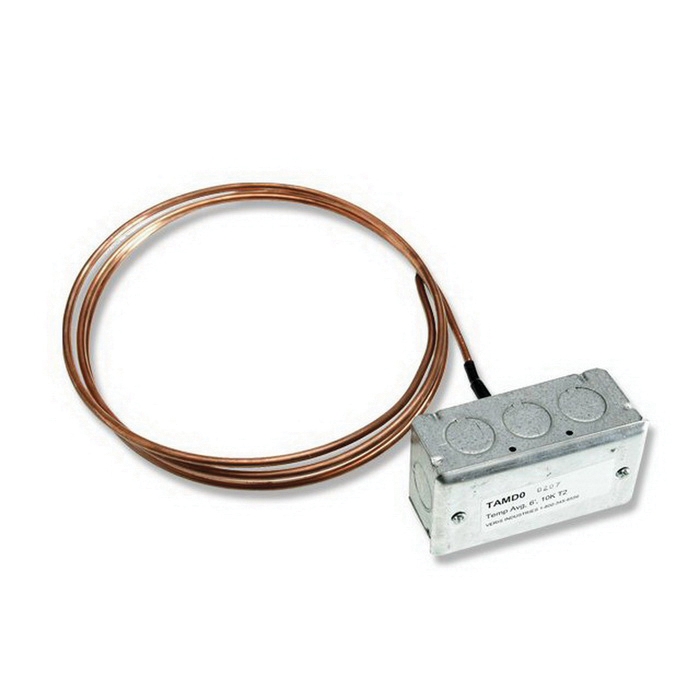

The TA series is a flexible TA sensor which averages the temperature read across the entire length of the copper tubing, making it ideal for duct temperature measurements. TA series sensors average the measured temperature across the duct in 12 ft lengths for the flexible probe.
