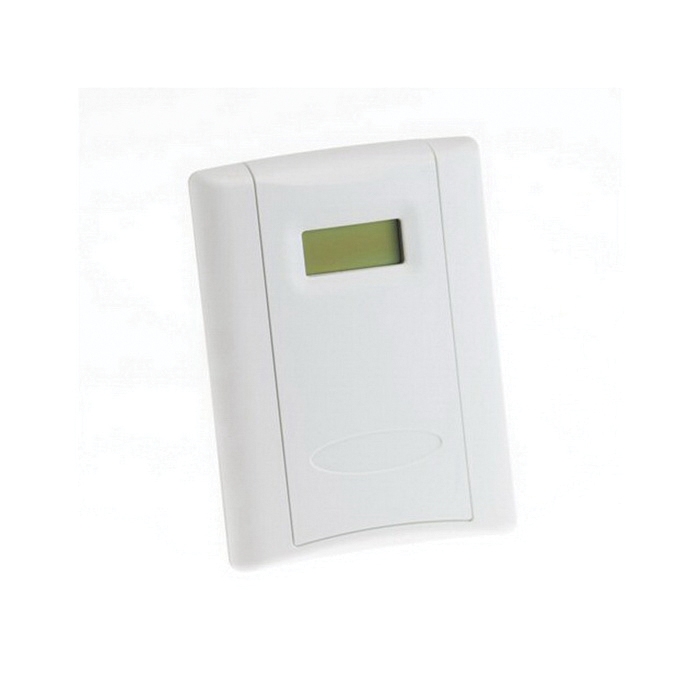

Veris HWLPHTX Wall Humidity Sensor

Deluxe Cloud White High-Impact ABS Plastic +/-2% Accuracy Transmitter Humidity and Temperature Sensor with LCD Display

  • Brand Name: Veris
  • Veris Part#: HWLPHTX
  • Est. Shipping Date: loading
Application Zone      :      Living Space
Application      :      Wall
Brand      :      Veris
Color      :      Cloud White
Communication      :      BACnet MS/TP | ModBus
Dimension Depth      :      1.2" (30 mm)
Dimension Height      :      4.8" (122 mm)
Dimension Width      :      3.5" (89 mm)
Display Size      :      1.2" x 0.6" (30.5 mm x 14 mm)
Display Type      :      LCD
Electrical Wiring Size      :      24 - 18 AWG (0.22 - 0.75 mm²)
Enclosure Material      :      ABS Plastic
Feature Level      :      Deluxe
Humidity Calibration Certificate      :      None
Humidity Measurement Accuracy      :      ±2%
Humidity Measurement Drift      :      ±1% @ 68 °F (20 °C) annually for 2 years
Humidity Measurement Range      :      0 - 100% RH
Humidity Measurement Resolution      :      0.1% RH
Humidity Sensor Type      :      Thin film capacitive, replaceable
Measurement Type      :      Humidity | Temperature
Mounting      :      Wall
Operating Humidity      :      0-100% RH, non-condensing (will recover from saturation)
Operating Temperature      :      50 - 95 °F (10 - 35 °C)
Outputs      :      Protocol Communication
Override      :      No
Product Certification      :      CE
Product Type      :      Sensor
Range      :      HWxP
Setpoint      :      No
Supply Voltage AC Nominal      :      24 VAC
Supply Voltage DC Range      :      12 - 30 VDC
Temperature Calibration Certificate      :      None
Temperature Measurement Accuracy      :      ±2.3 °F (±1.3 °C)
Temperature Measurement Range      :      50 - 95 °F (10 - 35 °C)
Temperature Measurement Resolution      :      0.1 °
Temperature Sensor Type      :      Transmitter
Warranty      :      5 years (1 year on replaceable RH element)

HW Protocol series deluxe humidity transmitters provide an ideal solution for measuring relative humidity in all conditions. All devices are equipped with a thin-film capacitive sensor that is easily replaceable in the field. These sensors are calibrated to NIST standards, with certificates available. The HWLP features embedded BACnet and Modbus communication protocols with humidity and temperature sensing capability. The setpoint slider and pushbutton override options offer additional local control. The wall-mounted HWLP features a low-profile housing with an LCD display for local indication. All models come with a standard 5 years warranty.

  • Embedded BACnet and Modbus communication protocols compatible with many existing control systems
  • Humidity and temperature sensors in one device at one address provides more information and maximizes system capacity
  • Sensor element - thin-film capacitive sensor element recovers from 100% saturation
  • Local control - Push button override capability to the building control system local control in individual rooms to maximize comfort
  • Self-calibration - algorithm Innovative self-calibration algorithm maximizes performance, field calibratable
  • Multiple baud rates - configurable to many baud rates
  • Replaceable digitally profiled thin-film capacitive (32-bit mathematics) US Patent 5,844,138 HS element, this sensing element has a 1 year warranty
