| Application Zone | : | Outdoor |
| Application | : | Outdoor Reference |
| Brand | : | Veris |
| Color | : | Gray and White |
| Dimension Depth | : | 2" (51 mm) |
| Dimension Height | : | 4.6" (117 mm) |
| Dimension Probe Diameter | : | 0.7" (18 mm) |
| Dimension Probe Length | : | 9.9" (251 mm) |
| Dimension Width | : | 2.9" (74 mm) |
| Electrical Wiring Size | : | 22 AWG (0.32 mm²) |
| Enclosure Material | : | Cast Aluminum/Stainless Steel Cover |
| Feature Level | : | Deluxe |
| Humidity Calibration Certificate | : | None |
| Humidity Measurement Accuracy | : | ±2% |
| Humidity Measurement Drift | : | ±1% @ 68 °F (20 °C) annually for 2 years |
| Humidity Measurement Range | : | 0 - 100% RH |
| Humidity Measurement Resolution | : | 0.1% RH |
| Humidity Sensor Type | : | Thin film capacitive, replaceable |
| Measurement Type | : | Humidity | Temperature |
| Mounting | : | Outdoor Wall |
| Operating Humidity | : | 0-100% RH, non-condensing (will recover from saturation) |
| Operating Temperature | : | -40 - 122 °F (-40 - 50 °C) |
| Output Specifications | : | 0 - 5 V | 0 - 10 V |
| Outputs | : | Analog output |
| Product Certification | : | CE |
| Product Type | : | Sensor |
| Range | : | HO |
| Supply Voltage AC Nominal | : | 24 VAC |
| Supply Voltage DC Range | : | 12 - 30 VDC |
| Temperature Calibration Certificate | : | 2 pts |
| Temperature Measurement Accuracy | : | ±2.3 °F (±1.3 °C) |
| Temperature Measurement Range | : | -40 - 122 °F (-40 - 50 °C) |
| Temperature Measurement Resolution | : | 0.1 ° |
| Temperature Sensor Type | : | Transmitter |
| Warranty | : | 5 years (1 year on replaceable RH element) |

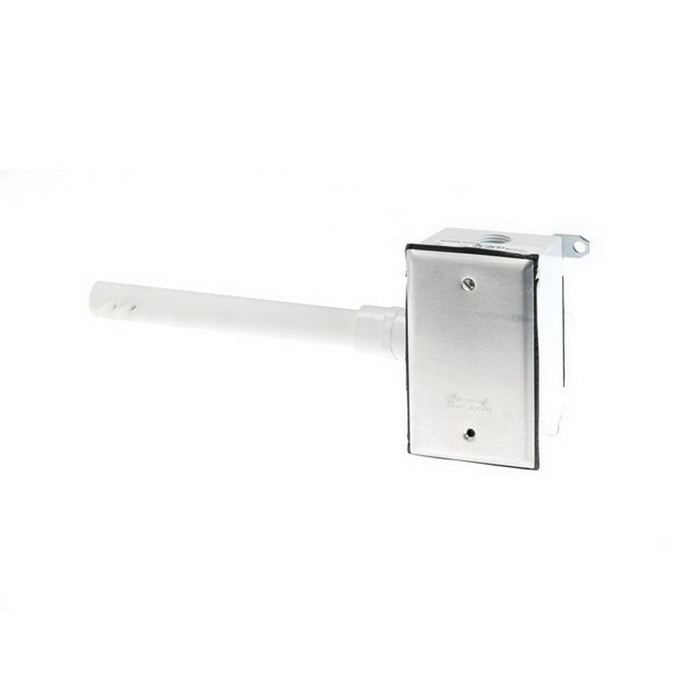

HO series deluxe humidity transmitters provide an ideal solution for measuring relative humidity in a wide range of conditions. All devices are equipped with a thin-film capacitive sensor that is easily replaceable in the field. The outdoor HO housing is completely weather proof - the most rugged sensor available. All deluxe HO models come with a standard 5 years warranty.
- Sensor element - thin-film capacitive sensor element recovers from 100% saturation
- Accuracy - fully interchangeable element to 2% accuracy no calibration
- Field replaceable - replace element in the field maintain accuracy and minimize downtime
- Easy servicing - duct sensor element can be serviced without disturbing conduit
- Potted circuitry - prevents costly condensate shorts
- Flexibility - polarity insensitive, 3-wire 0 to 5/0 to 10 VDC versions flexible systems compatibility save time in the field, stock fewer devices
- Outdoor enclosure
- 2-point calibration temperature certificate
- 3-wire, observe polarity
- Digitally profiled thin-film capacitive (32-bit mathematics) US Patent 5,844,138 HS element, this sensing element has a 1 year warranty
