| Application | : | Building Automation Systems |
| Current Measurement Range | : | 1.5 - 200 A |
| Current Sensor type | : | Current Switch, AC |
| Electrical Wiring Size | : | 24 - 14 AWG (0.2 - 2.1 mm²) |
| Measurement Type | : | AC Current |
| Model | : | H900 |
| Monitored Frequency Range | : | 50 - 60 Hz |
| Monitored Wire Size | : | 0.8" (21 mm) |
| Mounting | : | Split Core |
| Operating Humidity | : | 10 - 90% RH, non-condensing |
| Operating Temperature | : | 5 - 140 °F (-15 - 60 °C) |
| Output Specifications | : | N.O. 1 A @ 30 VAC/DC |
| Outputs | : | Switch output |
| Product Certification | : | UL | CE |
| Product Type | : | Sensor |
| Range | : | HX00 Series |
| Relay Coil Voltage | : | None |
| Relay Contact Ratings | : | None |
| Relay Poles/Throw | : | None |
| Setpoint | : | Fixed |
| Warranty | : | 5 years |

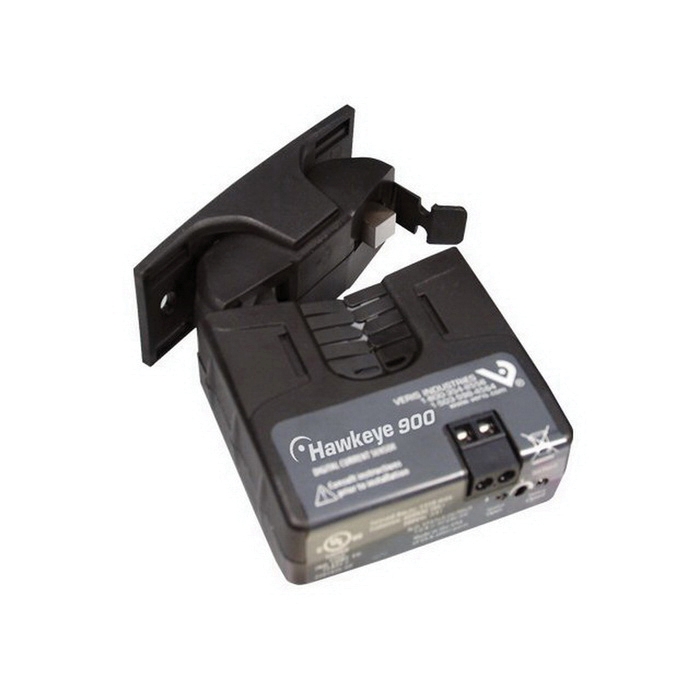

Hawkeye 900 on/off current switches provide a cost-effective solution for monitoring status on unit vents, exhaust fans, recirculation pumps and other fixed loads where belt loss is not a concern.
- More reliable for status than relays across auxiliary contacts
- Ideal for direct-drive units, unit vents, fan coil units, exhaust fans, and other fixed loads
- Low setpoint - minimum trip point as low as 1.5 A, avoids the need for multiple wraps of the conductor through the sensor even on loads as small as 1/5 hp
- Removable mounting bracket provides installation flexibility
- Quick installation - split-core for fast retrofit installation
- Flexibility - bracket on H900 can be installed in three different configurations
- Induced from monitored current sensor power
