| Application | : | Building Automation Systems |
| Current Measurement Range | : | 0.75 - 200 A |
| Current Sensor type | : | Current Switch, AC |
| Electrical Wiring Size | : | 24 - 14 AWG (0.2 - 2.1 mm²) |
| Measurement Type | : | AC Current |
| Model | : | H800-HV |
| Monitored Frequency Range | : | 50 - 60 Hz |
| Monitored Wire Size | : | 0.7" (18 mm) |
| Mounting | : | Solid Core |
| Operating Humidity | : | 10 - 90% RH, non-condensing |
| Operating Temperature | : | -40 - 122 °F (-40 - 50 °C) |
| Output Specifications | : | N.O. 0.5A @ 250 VAC/DC |
| Outputs | : | Switch output |
| Product Certification | : | UL |
| Product Type | : | Sensor |
| Range | : | HX00 Series |
| Relay Coil Voltage | : | None |
| Relay Contact Ratings | : | None |
| Relay Poles/Throw | : | None |
| Setpoint | : | Fixed |
| Warranty | : | 5 years |

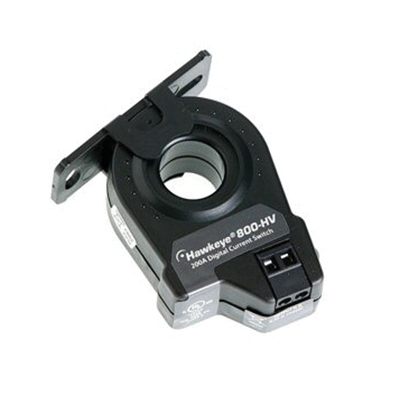

Hawkeye 800 on/off current switches provide a cost-effective solution for monitoring status on unit vents, exhaust fans, recirculation pumps and other fixed loads where belt loss is not a concern. Veris has applied new technology to the H800 model to achieve impressive improvement in turn-on levels.
- Reliable - more reliable for status than relays across auxiliary contacts
- Ideal for direct-drive units, unit vents, fan coil units, exhaust fans, and other fixed loads
- Installation flexibility - removable mounting bracket provides installation flexibility
- Induced from monitored current sensor power
- On/off status for Variable frequency drive (VFD) outputs at 12 to 115 Hz, VFD systems generate fields that can disrupt electrical devices, ensure that these fields are minimized and are not affecting the sensor
