| Application | : | Building Automation Systems |
| Current Measurement Range | : | 1 - 135 A |
| Current Sensor type | : | Current Switch, AC |
| Electrical Wiring Size | : | 24 - 14 AWG (0.2 - 2.1 mm²) |
| Measurement Type | : | AC Current |
| Model | : | H735 |
| Monitored Frequency Range | : | 50 - 60 Hz |
| Monitored Wire Size | : | 0.7" (18 mm) |
| Mounting | : | Solid Core |
| Operating Humidity | : | 10 - 90% RH, non-condensing |
| Operating Temperature | : | 5 - 140 °F (-15 - 60 °C) |
| Output Specifications | : | N.O. 1 A @ 30 VAC/DC |
| Outputs | : | Switch output | Relay |
| Product Certification | : | UL |
| Product Type | : | Sensor |
| Range | : | HX35 Series |
| Relay Coil Voltage | : | 24 VAC/DC |
| Relay Construction | : | Mechanical |
| Relay Contact Ratings | : | Resistive: 5 A @ 250 VAC | Resistive: 5 A @ 30 VDC | Inductive: 3 A @ 250 VAC | Inductive: 3 A @ 30 VDC |
| Relay Poles/Throw | : | SPST |
| Setpoint | : | Adjustable |
| Warranty | : | 5 years |

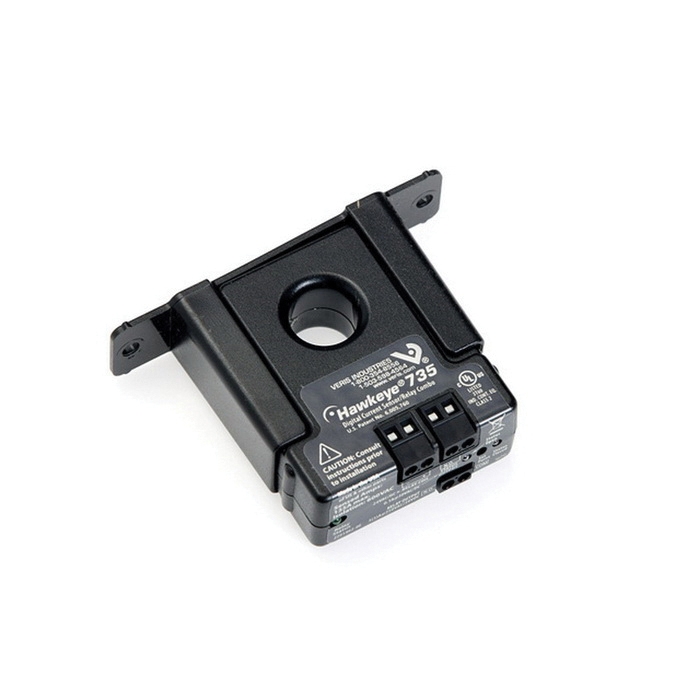

The Hawkeye relay combination series is the ideal solution for the automation installer. These units combine a current switch and relay into a single package, reducing the space required for total control of fans and pumps. The current switch and relay operate independently of one another. These devices allow start/stop control and status monitoring with one device instead of two.
- Combined relay and status - combines command relay and fan/pump status sensor in a single, easy-to-install unit
- Fan and pump status - detect belt loss and motor failure ideal for fan and pump status
- Polarity insensitive status outputs - fast and easy installation
- Two outputs - H748 feature a SPDT command relay control two outputs with a single relay
- Easy setup - relay and status LEDs
- Induced from monitored conductor sensor power
