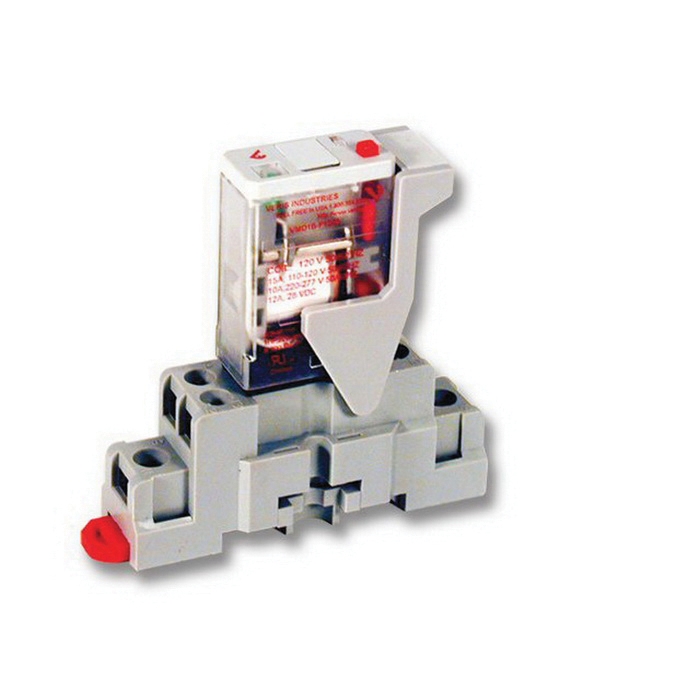

Veris FKIT-VMD1B-F24D Socket Relay
24 VDC Full-Featured Relay with VBD1B-F Socket, SPDT
- Brand Name: Veris
- Veris Part#: FKIT-VMD1B-F24D
-
Est. Shipping Date:
-
WARNING:
| Application | : | Building Automation Systems |
| Feature Level | : | Deluxe Socket | Deluxe Relay |
| Finger Safe Terminals | : | Yes |
| Hand-Off-Auto | : | Yes |
| Model | : | FKIT-VMD1B-F24D |
| Mounting | : | DIN | Wall |
| Operating Temperature | : | -40 - 131 °F (-40 - 55 °C) |
| Product Certification | : | UL | CE | CSA |
| Product Type | : | Socket relay |
| Range | : | FKIT Series |
| Relay Coil Voltage | : | 24 VDC |
| Relay Configuration | : | Kit |
| Relay Construction | : | Mechanical |
| Relay Contact Ratings | : | 15 A @ 120 VAC | 15 A @ 28 VDC | 15 A @ 277 VAC |
| Relay Hold-Down Clip | : | Yes |
| Relay Poles/Throw | : | SPDT |
| Warranty | : | 5 years |
The Veris VMD1B-F series are full-featured SPDT blade style relays for socket/DIN mounting. The VMD1B-F series are equipped with an LED for coil proof, a flag for contact proof, an override lever and a push-to-test button for momentary contact control. The VMD1B-F allows for instant and conclusive troubleshooting. Never wonder if the relay, control system or wiring is the cause of a problem. The DIN-rail-compatible VBD1B-F sockets feature a slim design with finger-safe terminals and a removable hold-down clip. Never struggle with wire clips again.
- Color-coded pushbutton - allows manual operation of relay, AC coils red or DC coils blue
- LED status lamp - shows coil on/off status
- 2-way mounting - side or DIN rail mounting system, retrofits existing panel mounting and 35 mm DIN rail
- Override lever - when activated, locks pushbutton and contacts in the powered position
- Flag indicator - shows relay status in manual or powered condition
