| Application | : | Building Automation Systems |
| Electrical Wiring Size | : | Coil: 18 AWG (0.25 mm²), Contacts and HOA: 12 AWG (4 mm²) |
| Hand-Off-Auto | : | No |
| Model | : | V220 |
| Mounting | : | DIN | Wall |
| Operating Temperature | : | -29 - 131 °F (-34 - 55 °C) |
| Product Certification | : | UL |
| Product Type | : | Relay |
| Range | : | Victory Series |
| Relay Coil Voltage | : | 24 VAC/DC | 208 - 277 VAC |
| Relay Construction | : | Mechanical |
| Relay Contact Ratings | : | 20 A @ 28 VDC | 20 A @ 277 VAC |
| Relay Poles/Throw | : | SPDT |
| Warranty | : | 5 years |

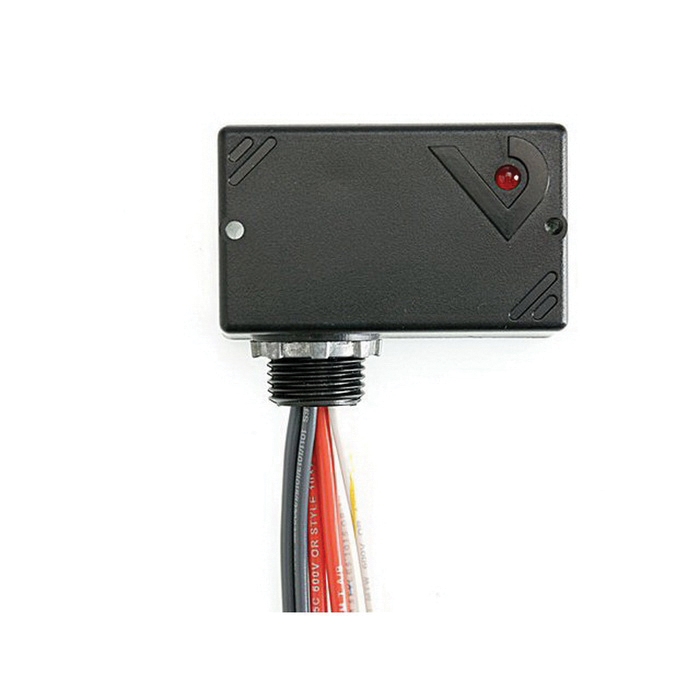

The Victory 220 20 A SPDT enclosed relays combine a power duty relay with a high level of field-selectability and versatility. The devices are quick and easy to install using the threaded nipple mount. With no need for a dedicated field enclosure, this series is ideal for retrofit projects.
- Sleek enclosure - reduces the need for panel space
- The nipple mount feature allows the V220 series to be mounted to any electrical enclosure easing installation
- HP ratings make the V220 ideal for control of fractional HP motors
- UL 508 listed - designed and listed for field installation, makes electrical inspection a snap
- Eliminate conduit - run low voltage instead of line voltage, eliminates conduit in some applications
