| Application | : | Building Automation Systems |
| Electrical Wiring Size | : | Coil: 18 AWG (0.25 mm²), Contacts: 12 AWG (4 mm²), HOA: 16 AWG (1.5 mm²) |
| Hand-Off-Auto | : | Yes |
| Model | : | V122 |
| Mounting | : | DIN | Wall |
| Operating Temperature | : | -40 - 131 °F (-40 - 55 °C) |
| Product Certification | : | UL |
| Product Type | : | Relay |
| Range | : | Victory Series |
| Relay Coil Voltage | : | 24 VAC/DC, 120 VAC |
| Relay Construction | : | Mechanical |
| Relay Contact Ratings | : | 12 A @ 14 VDC | 8 A @ 28 VDC | 20 A @ 240 VAC |
| Relay Poles/Throw | : | SPST |
| Warranty | : | 5 years |

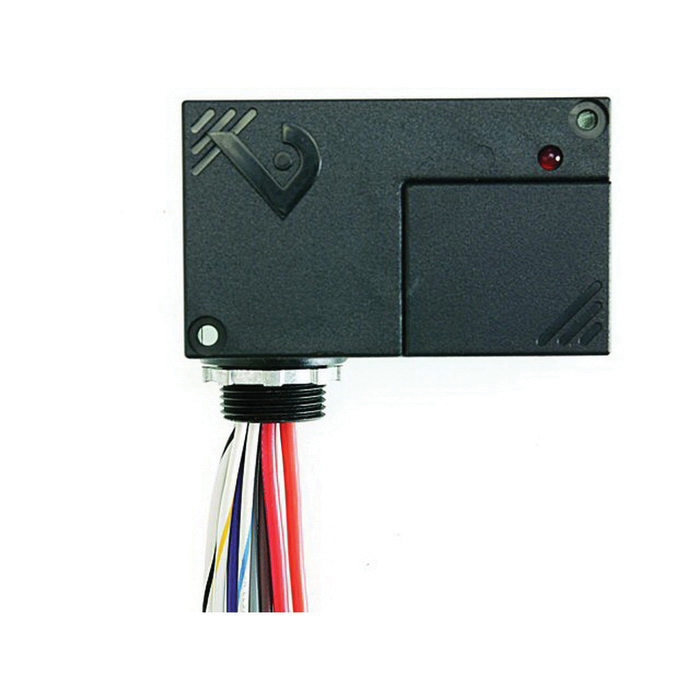

The Victory 122 series HOA relays have a concealed HOA switch for local control and troubleshooting with limited unauthorized switch manipulation. To further guard against control system override, the V122 equipped with a monitored HOA. The V122 provides a 2-wire resistive output. Now you can enjoy the convenience of local control with none of the drawbacks.
- Protective cover - conceals and protects the HOA switch, reducing the likelihood of tampering
- Nipple mount - allows the V121 series to be mounted to any electrical enclosure easing installation
- Flexible tinned stranded wire, fits easily in tight spaces and provides secure connections to wire nuts
- UL 508 listed - designed and listed for field installation, makes electrical inspection a snap
- Sleek enclosure - reduces the need for panel space
- Switch position monitors - allows the control system to notify personnel when a load is inadvertently left on or off
