| Application | : | Building Automation Systems |
| Electrical Wiring Size | : | Coil: 18 AWG (0.25 mm²), Contacts: 16 AWG (1.5 mm²) |
| Hand-Off-Auto | : | No |
| Model | : | V100D |
| Mounting | : | DIN | Wall |
| Operating Temperature | : | -40 - 131 °F (-40 - 55 °C) |
| Product Certification | : | UL |
| Product Type | : | Relay |
| Range | : | Victory Series |
| Relay Coil Voltage | : | 10 - 30 VAC/DC, 120 VAC |
| Relay Construction | : | Mechanical |
| Relay Contact Ratings | : | 10 A @ 28 VDC | 10 A @ 277 VAC |
| Relay Poles/Throw | : | 2 x SPDT |
| Warranty | : | 5 years |

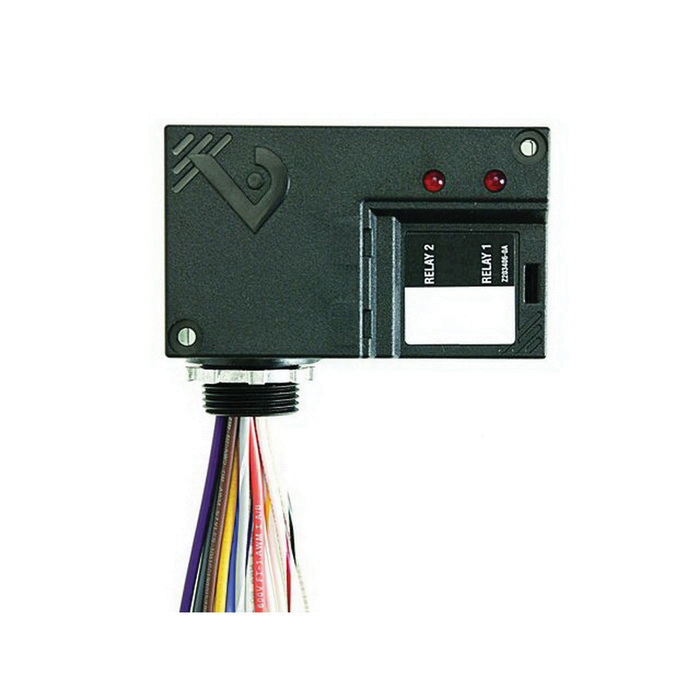

Victory 100 series 10 A enclosed relays are pilot-duty relays in an easy-to-use nipple mount enclosure. The V100 series provide quick relay mounting without a dedicated field enclosure, making them ideal for retrofit projects. Field-selectable high and low voltage coil inputs provide on-site versatility.
- Sleek enclosure - reduces the need for panel space
- Nipple mount - Victory series products can be mounted to any electrical enclosure, easing installation
- Flexible tinned stranded wire, fits easily in tight spaces and provides secure connections to wire nuts
- UL 508 listed - designed and listed for field installation, makes electrical inspection a snap
- Eliminate conduit - run low voltage instead of line voltage, eliminates conduit in some applications
