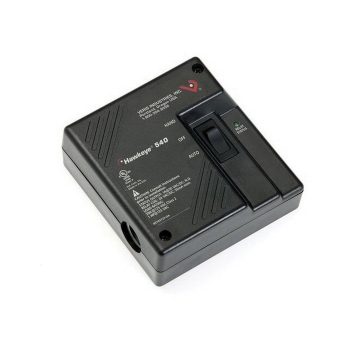

Veris H540 Current Monitor Relay

Hawkeye 0.25 to 15 A Fixed Trip Combination Switching Relay, SPST, NO/NC Field-Selectable

  • Brand Name: Veris
  • Veris Part#: H540
  • Est. Shipping Date: loading
Application      :      Building Automation Systems
Current Measurement Range      :      0.25 - 15 A
Current Sensor type      :      Current Transducer, AC, with Relay
Electrical Wiring Size      :      24 - 14 AWG (0.2 - 2.1 mm²)
Hand-Off-Auto      :      Yes
Measurement Type      :      AC Current
Model      :      H540
Monitored Frequency Range      :      50 - 60 Hz
Mounting      :      4 x 4 Box
Operating Humidity      :      10 - 90% RH, non-condensing
Operating Temperature      :      5 - 122 °F (-15 - 50 °C)
Output Specifications      :      N.O. 1 A @ 30 VAC/DC
Outputs      :      Switch output | Relay
Product Certification      :      UL
Product Type      :      Sensor
Range      :      Motor Control Series
Relay Coil Voltage      :      24 VAC/DC
Relay Construction      :      Mechanical
Relay Contact Ratings      :      Resistive: 15 A @ 277 VAC | Motor: 1 H.P. @ 120 VAC
Relay Poles/Throw      :      SPST
Setpoint      :      Fixed
Warranty      :      5 years

The Hawkeye 5xx series combines an industrial grade load switching relay, current status switch and hand-off-auto (HOA) switch in an easy to install remote enclosure making the series ideal for monitoring, directly controlling and troubleshooting the control wiring of fractional horsepower motors. The relay, current sensor and HOA switch are combined in a series circuit. Once a 500 is wired in series between the power source and motor, all three components are installed. The housing provides physical separation and multiple wiring exits to isolate control and high voltage wiring. A 500 can be mounted directly on 2 or 4 gang junction boxes, nippled to a field enclosure, or stand alone.

  • Remote mounted current status sensor and command relay with HOA switch
  • Combines status sensor, command relay and HOA switch in a single series circuit one line connection for three devices
  • Gang box mounting - mounts directly onto gang box, flush to existing enclosures and standalone
  • HOA provides true relay control ideal for troubleshooting control wiring
  • SPST relay is field-selectable for NO or NC operation
  • All models rated up to 1 hp at 120 VAC one product for all fractional HP motor control and status applications
  • Induced from monitored conductor sensor power
  • Relay power LED
