| Application | : | Building Automation Systems |
| Electrical Wiring Size | : | Coil: 18 AWG (0.25 mm²), Contacts: 16 AWG (1.5 mm²) |
| Hand-Off-Auto | : | No |
| Model | : | V400 |
| Mounting | : | DIN | Wall |
| Operating Temperature | : | -29 - 140 °F (-34 - 60 °C) |
| Product Certification | : | UL |
| Product Type | : | Relay |
| Range | : | Victory Series |
| Relay Coil Voltage | : | 20 - 30 VAC/DC | 208 - 277 VAC |
| Relay Construction | : | Mechanical |
| Relay Contact Ratings | : | 10 A @ 28 VDC | 10 A @ 250 VAC |
| Relay Poles/Throw | : | DPDT |
| Warranty | : | 5 years |

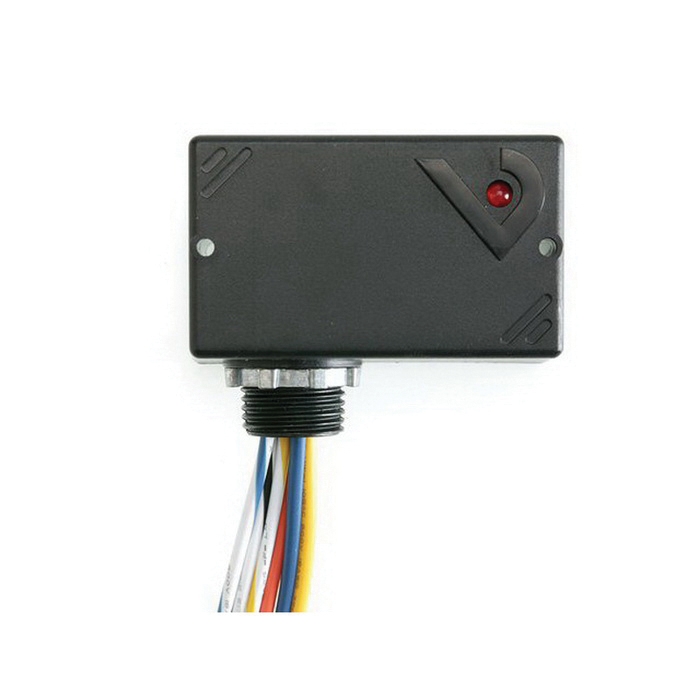

The Victory 400 series 10 A DPDT pilot duty enclosed relays combine industrial strength and ease of use. The nipple mount enclosure makes installation easy. With no need for a dedicated field enclosure, they are the ideal retrofit devices. One coil input controls the state of two pilot rated contacts for the simultaneous control of two devices or both poles of a 1-phase circuit, e.g. motor loads. Field-selectable high and low voltage coil inputs provide on-site versatility.
- Nipple mount - can be mounted to any electrical enclosure, easing installation
- Sleek enclosure - reduces the need for panel space
- Flexible tinned stranded wire, fits easily in tight spaces and provides secure connections to wire nuts
- UL 508 listed - designed and listed for field installation, makes electrical inspection a snap
- Eliminate conduit - run low voltage instead of line voltage, eliminates conduit in some applications
