Veris VMD2B-C24D
Send Print Share
  1. pin-int

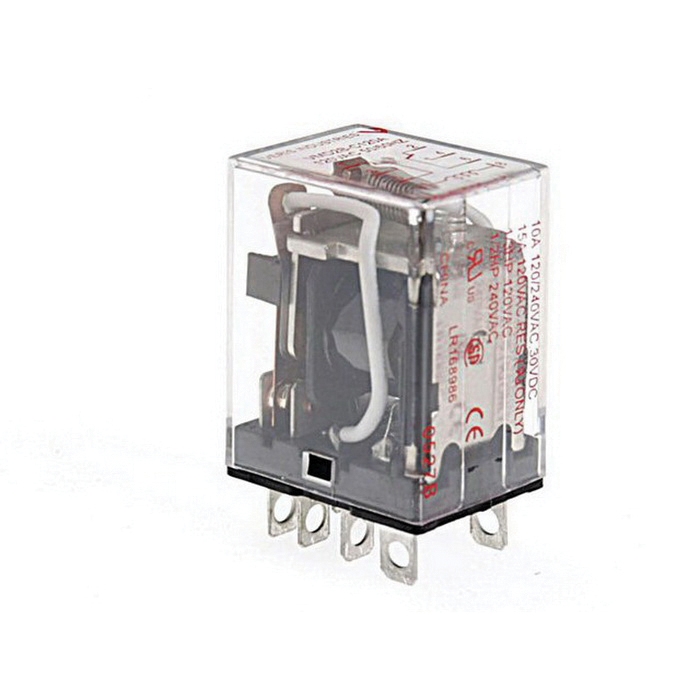

Veris VMD2B-C24D Socket Relay

24 VDC Standard Relay, DPDT

  • Brand Name: Veris
  • Veris Part#: VMD2B-C24D
Application      :      Building Automation Systems
Feature Level      :      Economy Relay
Hand-Off-Auto      :      No
Model      :      VMD2B-C24D
Mounting      :      DIN | Wall
Operating Temperature      :      -40 - 131 °F (-40 - 55 °C)
Product Certification      :      UL | CE | CSA
Product Type      :      Relay
Range      :      VMD Series
Relay Coil Voltage      :      24 VDC
Relay Configuration      :      Socket only
Relay Construction      :      Mechanical
Relay Contact Ratings      :      15 A @ 120 VAC | 12 A @ 28 VDC | 12 A @ 277 VAC
Relay Poles/Throw      :      DPDT
Warranty      :      5 years

Veris VMD2B series are DPDT blade-style relays for socket/DIN mounting.

  • 2-way mounting - side or DIN rail mounting system, retrofits existing panel mounting and 35 mm DIN rail
  • pdf Datasheet https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/VMD2B_d0122.pdf
