| Application | : | Building Automation Systems |
| Feature Level | : | Economy Relay |
| Hand-Off-Auto | : | No |
| Model | : | VMD1B-C24D |
| Mounting | : | DIN | Wall |
| Operating Temperature | : | -40 - 131 °F (-40 - 55 °C) |
| Product Certification | : | UL | CE | CSA |
| Product Type | : | Relay |
| Range | : | VMD Series |
| Relay Coil Voltage | : | 24 VDC |
| Relay Configuration | : | Socket only |
| Relay Construction | : | Mechanical |
| Relay Contact Ratings | : | 15 A @ 120 VAC | 15 A @ 28 VDC | 15 A @ 277 VAC |
| Relay Poles/Throw | : | SPDT |
| Warranty | : | 5 years |

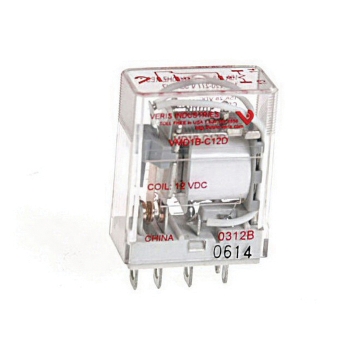

The Veris VMD1B-C series are SPDT blade-style relays for socket/DIN mounting. The DIN-rail compatible VBD1B-C sockets feature finger-safe terminals in a slim, attractive design.
- 2-way mounting - side or DIN rail mounting system, retrofits existing panel mounting and 35 mm DIN rail
