| Application | : | Building Automation Systems |
| Feature Level | : | Deluxe Socket | Deluxe Relay |
| Finger Safe Terminals | : | Yes |
| Hand-Off-Auto | : | Yes |
| Model | : | FKIT-VMD3B-F24D |
| Mounting | : | DIN | Wall |
| Operating Temperature | : | -40 - 131 °F (-40 - 55 °C) |
| Product Certification | : | UL | CE | CSA |
| Product Type | : | Socket relay |
| Range | : | FKIT Series |
| Relay Coil Voltage | : | 24 VDC |
| Relay Configuration | : | Kit |
| Relay Construction | : | Mechanical |
| Relay Contact Ratings | : | 15 A @ 120 VAC | 12 A @ 28 VDC | 12 A @ 277 VAC |
| Relay Hold-Down Clip | : | Yes |
| Relay Poles/Throw | : | 3PDT |
| Warranty | : | 5 years |

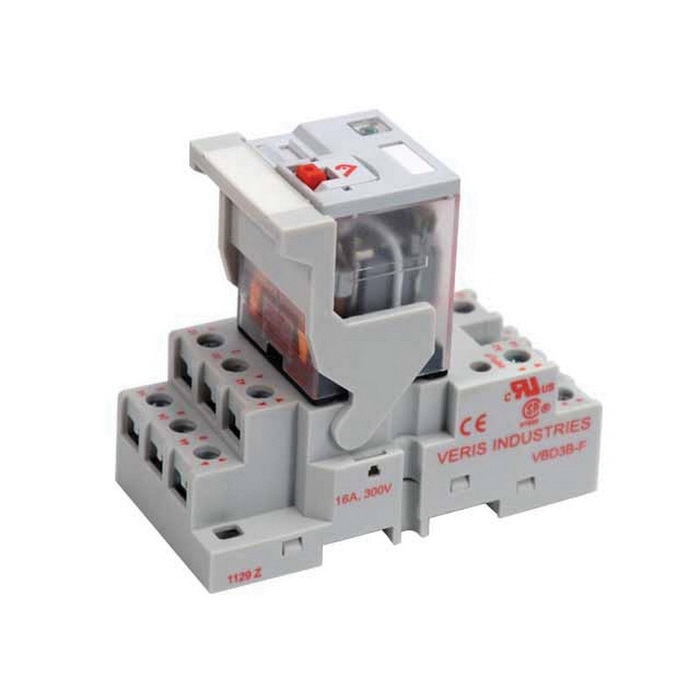

The VMD3B series are 3PDT blade-style relays for socket/DIN mounting. The full featured VMD3B-F includes an LED and a flag indicator for convenient status viewing and a push-button test feature for easy troubleshooting. The finger-safe sockets reduce risk and the hold-down clip keeps the device secure. Enhanced safety and dependability.
- Color-coded pushbutton - allows manual operation of relay, AC coils red or DC coils blue
- LED status lamp - shows coil on/off status
- 2-way mounting - side or DIN rail mounting system, retrofits existing panel mounting and 35 mm DIN rail
- Override lever - when activated, locks pushbutton and contacts in the powered position
- Flag indicator - shows relay status in manual or powered condition
- ID tag/write-on plastic label, used for identification of relays in multi-relay circuits
