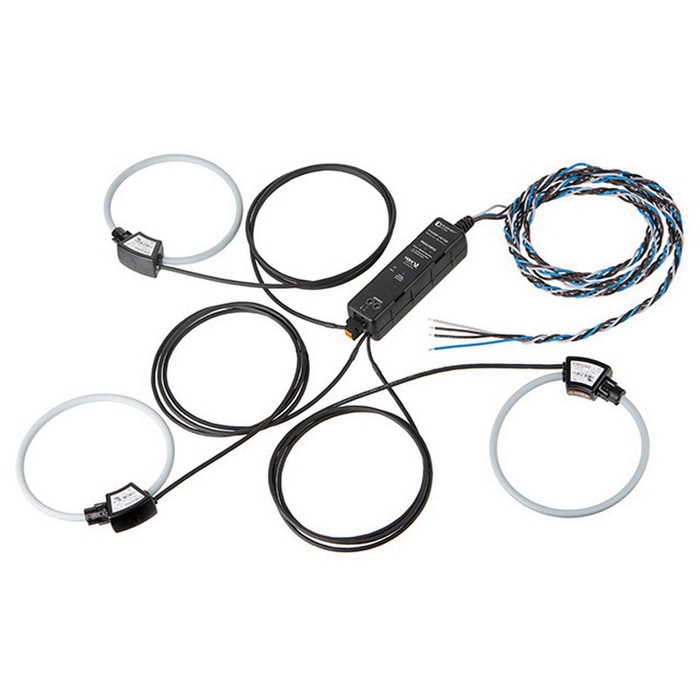

Veris E23C5-12 Advanced Power Meter

System Calibrated Enercept Modbus RTU and BACnet MS/TP Protocol Output 1-Circuit Compact Power and Energy Meter, 12 in Rogowski Circuit, IEC International

  • Brand Name: Veris
  • Veris Part#: E23C5-12
  • Est. Shipping Date: loading
Accuracy      :      0.2%, 0.3V Input Mode, 0.5% Rogowski Input Mode
Communication      :      ModBus (RTU) | BACnet (MS/TP)
Dimensions      :      2.1" (53.08 mm) W x 6.7" (169.33 mm) L x 1.8" (46.28 mm) H
Display Type      :      None
Environmental Conditions      :      Humidity Range: Less Than 95% RH Non-Condensing; Storage Temperature: -40 to 158 °F; Altitude of Operation: 3000 m
Frequency Rating      :      45 - 65 HZ
Metering Product Family      :      Enercept System Calibrated
Monitored Voltage Range      :      90 - 480 VAC
Mounting      :      Panel Mount
Operating Temperature      :      -22 - 158 °F
Output Specifications      :      Modbus RTU and BACnet MS/TP Protocol
Product Type      :      Compact Power and Energy Meter, 1-Circuit
Range      :      E2X

System calibrated Enercept E2x series power and energy meters provide a unique solution for measuring energy data. Designed with the user in mind, these meters offer maximum application flexibility for retrofit applications. These meters provide innovative three-phase networked (Modbus RTU and BACnet MS/TP) power transducers that calibrate measurement electronics, high accuracy industrial grade CTs and fusing protection in a single package. External mounting is eliminated, greatly reducing installation and configuration time and cost. Color coordination between voltage leads and CTs makes phase matching easy. Communicating models support auto detection of baud rate, parity and protocol for Modbus RTU and BACnet MS/TP. Up to 63 Enercept meters can be daisy-chained on a single RS-485 network.

  • Pre-wired and factory calibrate - meter, CTs and fuse pack pre-wired and factory calibrated for timesaving installation and improved system-level accuracy meter + CTs + Fuse pack (ANSI models only), meter + CTs (IEC models)
  • 90 to 480 VAC application versatility with fewer models to stock
  • One part number simplifies ordering - meter + CTs (IEC models)
  • Easy ordering and stocking - Modbus and BACnet protocols along with uni-directional and bi-directional feature sets in one unit
