| Application | : | Building Automation Systems |
| Current Protection | : | Circuit Breaker |
| Insulation Class | : | 2 |
| Model | : | X050CNB |
| Mounting | : | 2 Hub | 1 Foot |
| Operating Temperature | : | -40 - 149 °F (-40 - 65 °C) |
| Power Consumption | : | 50 VA |
| Product Certification | : | UL | CE |
| Product Type | : | Transformer |
| Range | : | X series |
| Secondary Voltage AC Nominal | : | 24 VAC |
| Secondary Voltage AC Range | : | 24 VAC |
| Supply Voltage AC Nominal | : | 120 VAC | 208 VAC | 240 VAC |
| Warranty | : | 5 years |

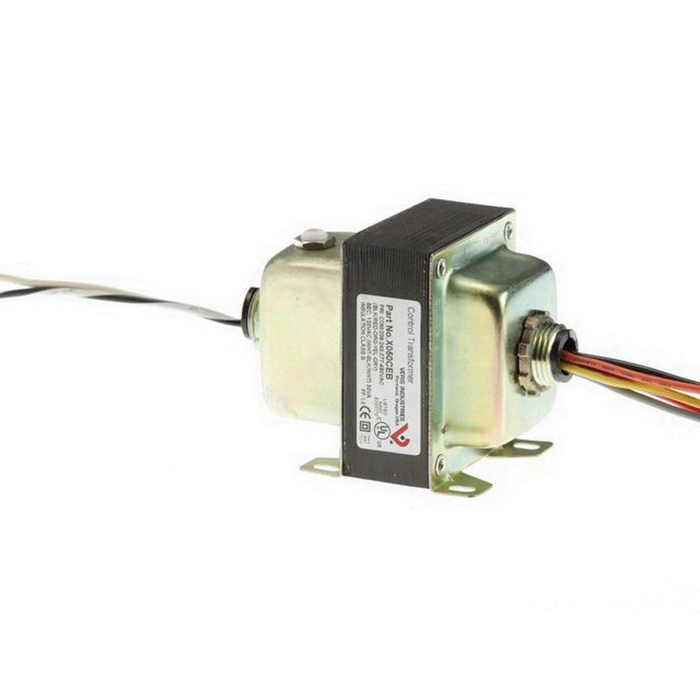

Veris X series control transformers are a convenient source of control power for HVAC control and building automation applications. A wide variety of UL-listed transformers are available with single and dual threaded hub mounting options. Multiple current limiting options are available, including a circuit breaker in some models.
- Threaded hub options maximize installation flexibility
- UL listings for all models simplify panel building requirements
- Separated primary and secondary wire
