| Application | : | Water and Leak detection for BAS applications |
| Communication | : | SNMP | SMTP | TCP/IP | ModBus (TCP-IP) | BACnet (IP) |
| Leak Detection Sensor Type | : | Controller |
| Logging Capability | : | Yes |
| Model | : | LD2100 |
| Operating Altitude | : | 15,000' (4572 m) max. |
| Operating Temperature | : | 32 - 122 °F (0 - 50 °C) |
| Outputs | : | Protocol Communication | Relay |
| Product Certification | : | CE | ETL |
| Product Type | : | Control panel |
| Range | : | Leak Detection |
| Relay Contact Ratings | : | 1 A @ 24 VDC | 0.5 A @ 120 VAC |
| Response Time | : | 5 - 995 s |
| Warranty | : | 2 years |

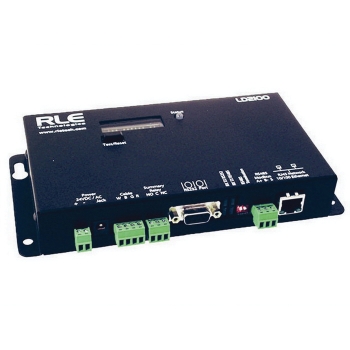

The LD2100 panels detect and report the presence and location of the cable-specific fluid. When the fluid comes in contact with the patented cable, the monitoring panel quickly pinpoints the location of the leak, triggering an alarm and displaying the location.
- Adjustable leak and contamination alarm thresholds reduce false alarms due to high humidity, high detection accuracy
- PC configuration - fast response - summary alarm relay output
- 9600 baud, No parity, 8 data bits, 1 stop bit RS-232 communication ports
- 1200, 2400, 9600, or 19200 baud (selectable), No parity, 8 data bits, 1 stop bit RS-485 communication ports
- VT100 compatible RS-232 terminal emulation protocals
- Slave, RTU Mode, Supports function codes 03, 04, 06, and 16, Johnson N2 RS-485 Modbus protocals
- IPv4.0 TCP/IP, HTML, TFTP expanded protocols
- V1: V2C MIB-2 compliant; NMS Manageable with Get, Set, Traps SNMP expanded protocols
- Supports client authentication (plain and login), compatible with ESMTP servers SMTP email expanded protocols
- Modbus slave; TCP/IP transmission protocol Modbus TCP/IP expanded protocols
- ASHRAE Std 135-2004 Annex J BACnet/IP expanded protocols
- 4 email recipients, email sent on alarm and return to normal email
- 4 community strings SNMP traps
- Last 500 events logging capabilities
- Cable current level every day, for the last 288 days trend logging capabilities
- 1 Administrator (password for configuration, no password required to view panel status) display Access
- Green alphanumeric dot matrix display
- Test/reset push buttons
- 1 bi-color Power/Status (green=power on, red=alarm) LED indicator
