| Accuracy | : | 1% System, +/-0.5% of Reading 90 to 277 VAC Line-to-Neutral Voltage, +/-0.5% of Reading from Current |
| Communication | : | ModBus (RTU) |
| Dimensions | : | 8.9" (226 mm) W x 5.8" (146 mm) L |
| Environmental Conditions | : | Humidity Range: Less Than 95% RH Non-Condensing; Storage Temperature: -40 to 158 °F; Altitude of Operation: 3000 m |
| Feature Level | : | Advanced (kWh Per Circuit) |
| Frequency Rating | : | 50 - 60 Hz |
| Metering Product Family | : | E31 Branch Circuit Meter Only |
| Monitored Voltage Range | : | 90 - 277 VAC, Line to Neutral |
| Mounting | : | Split-Core |
| Operating Temperature | : | 32 - 140 °F |
| Output Specifications | : | Modbus RTU,2 or 4 wire, RS485 |

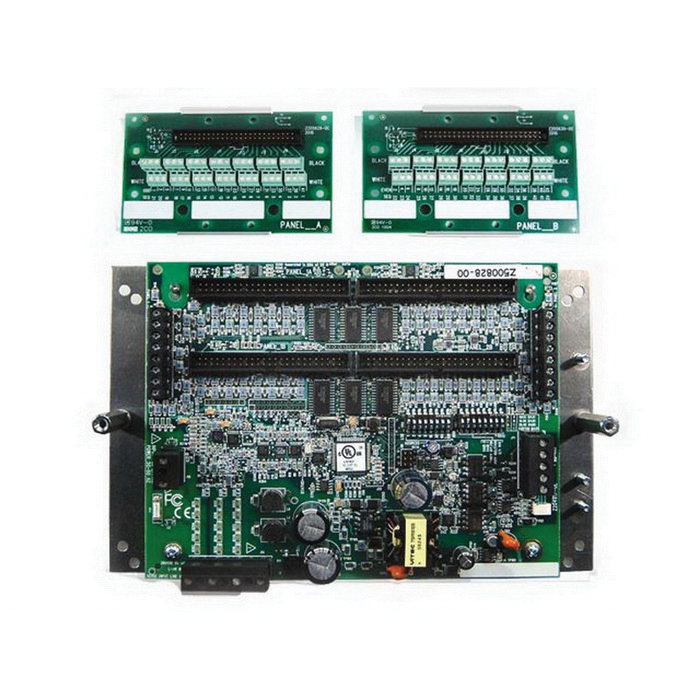

| Product Type | : | Adapter Board, Advanced |
| Range | : | E31 |
The E31 series panel board monitoring system provides a cost effective solution for electrical load management, making it ideally suited for applications where loads are dynamic, such as the data storage industry, lighting panels, etc. The E31 series monitors the current, voltage, instantaneous power, demand and energy consumption of each circuit in a panel board including the main feed. As a circuit approaches the user configured thresholds, alarm indicators are triggered, preventing costly downtime from overloaded circuits or failed loads.
- Revenue grade - ANSI and IEC Class 1 metering system accuracy including branch CTs
- Widest dynamic range in the industry, 50 mA to 100 A monitoring
- New construction and retrofit applications
- Up to 92 channels - monitor up to 92 circuits per unit providing unlimited possibilities for monitoring
