| Application | : | Flow |
| Display Type | : | LCD |
| Field Programmable | : | Yes |
| Fitting Material | : | Stainless Steel |
| Flow Measurement Accuracy | : | ±2.05% |
| IP Protection | : | IP66 (NEMA 4) |
| Measurement Type | : | Flow |
| Operating Temperature | : | -40 - 330 °F (-40 - 165 °C) |
| Output Specifications | : | 4 - 20 mA | Scaled Pulse |
| Outputs | : | Analog output | Pulse output |
| Product Certification | : | UL 913 | CSA 22.2 |
| Product Type | : | Monitor |
| Range | : | QuikSert |
| Standards | : | ATEX II |
| Totalizer Quantities | : | 2 |
| Totalizer Resettable | : | Yes |
| Warranty | : | 1 year |

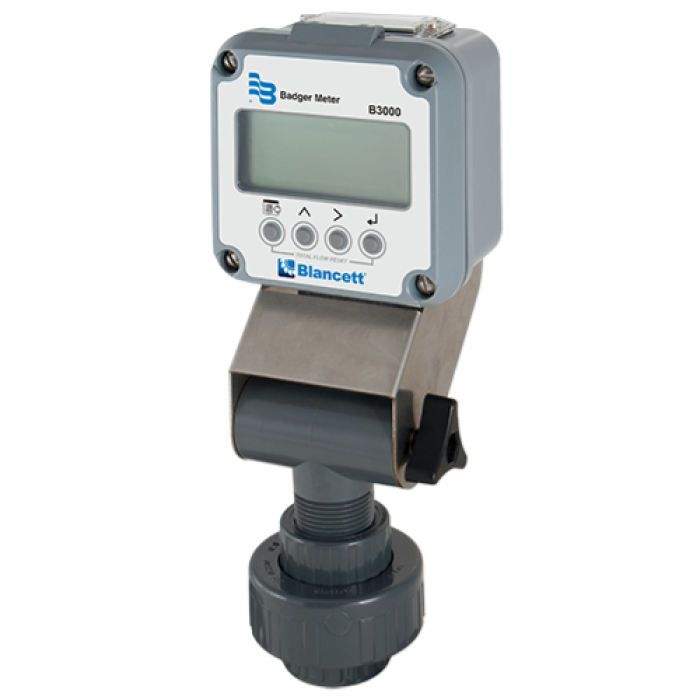

B30xx series flow monitors are offered for use with the B142 gas Quicksert gas flow meter. The B30xx series provides a flexible, durable, easy-to-use platform for flow metering applications.
- NEMA 4X (IP66) enclosure with meter mount
- Battery and 4 to 20 mA loop power options can be installed in remote locations and be up and running immediately
- Battery life up to 8 years maintain readings and settings during power loss
- All models feature pulse and 4 to 20 mA outputs
- Robust alarm parameters - faster warning when something in the system changes
- Auto switching between internal battery and external loop power, battery: 3.6 VDC lithium D Cell gives up to 6 years of service life Loop: 4 to 20 mA, 2-wire, 25 mA limit, non-polarity sensitive, 7 VDC loop loss
- Polycarbonate, stainless steel, polyurethane, thermoplastic elastomer, acrylic; NEMA 4X/ IP66
