| Application | : | Flow |
| Fitting Material | : | Brass | Stainless Steel | Polymer |
| Fitting Size | : | 0.75" NPT |
| Fitting Type | : | Threaded |
| Flow Measurement Accuracy | : | ±1% |
| Flow Measurement Range | : | 2.5 - 54 GPM (10 - 204 LPM) |
| Flow Measurement Repeatability | : | ±0.7% |
| Flow Sensor Type | : | Impeller |
| Hot-Tap Option | : | No |
| Medium | : | Water based liquids |
| Operating Fluid Temperature | : | Rated 221 °F (105 °C) continuous |
| Outputs | : | Frequency output |
| Pipe Material | : | Copper | Polymer | Steel | Stainless Steel |
| Product Certification | : | CE Equipment Class A EN 50082-2 and EN 55019 |
| Product Type | : | Sensor |
| Range | : | 250 Series |
| Warranty | : | 1 year |

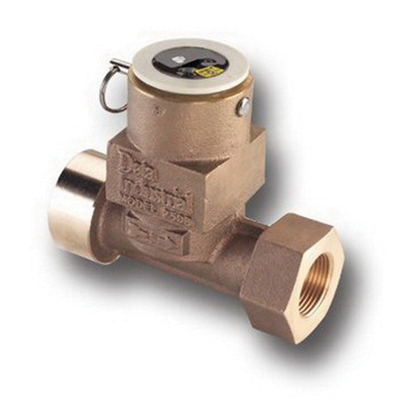

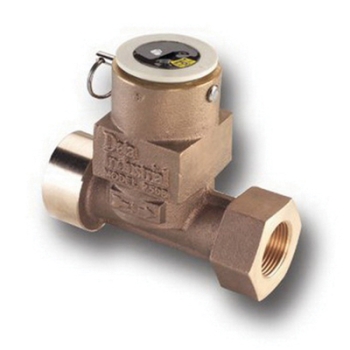

Metal tee-style liquid flow sensor with cast brass housing fits 1/2 to 1-1/2 in NPT. These sensors are accurate, even at low flow rates. Use in conjunction with a flow monitor or transmitter for a complete flow monitoring system.
- Signal can travel up to 2000 ft between the sensor and the display unit without the need for amplification
- Operation and repeatability even at low flow rates
- Six-bladed impeller design with a proprietary, non-magnetic sensing mechanism for high accuracy and repeatability, forward-swept impeller is less prone to fouling by water-borne debris, reliable performance with minimal downtime
- No amplification - signal can travel up to 2000 ft between the sensor and the display unit without the need for amplification
- PPS electronics housing
- Standard electronics
- Wetted materials - pennlon bearing, nylon impeller, tungsten carbide shaft, EPDM O-rings
