| Application | : | Flow |
| Fitting Material | : | Stainless Steel | Steel | Polymer |
| Fitting Size | : | 3" + |
| Flow Measurement Accuracy | : | ±1% of F.S. |
| Flow Measurement Range | : | 0.5 - 30 ft/s (0.2 - 9 m/s) |
| Flow Measurement Repeatability | : | ±0.3% of F.S. |
| Flow Sensor Type | : | Impeller |
| Hot-Tap Option | : | No |
| Medium | : | Water based liquids |
| Operating Fluid Temperature | : | Rated 221 °F (105 °C) continuous |
| Outputs | : | Frequency output |
| Pipe Material | : | Copper | Polymer | Steel | Stainless Steel |
| Product Certification | : | CE Equipment Class A EN 50082-2 and EN 55012 |
| Product Type | : | Sensor |
| Range | : | 220 Series |
| Warranty | : | 1 year |

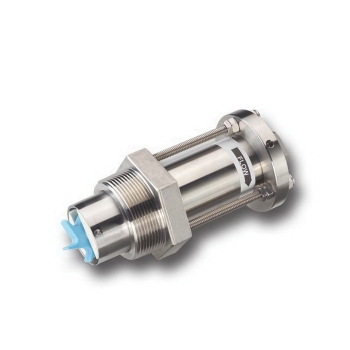

Insert-style liquid flow sensors with brass or stainless steel sleeves fit pipe sizes from 3 to 40 in. Sensor output is a frequency that indicates flow rate. Used in conjunction with a compatible flow monitor or transmitter, these non-magnetic flow sensors provide an accurate reading of the rate of liquid flow, as well as total accumulated flow.
- Signal can travel up to 2000 ft between the sensor and the display unit without the need for amplification
- Six-bladed impeller design with a proprietary, non-magnetic sensing mechanism for high accuracy and repeatability, forward-swept impeller is less prone to fouling by water-borne debris, reliable performance with minimal downtime
- PPS electronics housing
- Standard electronics
- Pennlon bearing, nylon impeller, tungsten carbide shaft, EPDM O-rings
