| Application | : | Water and Leak detection for BAS applications |
| Cut Resistance | : | >40 lbs (18 kg) with 0.005" (0.13 mm) blade |
| Leak Detection Sensor Type | : | Sensing cable |
| Measurement Type | : | Direct detection |
| Medium | : | Water |
| Model | : | SD-1000 |
| Product Certification | : | CE | ETL |
| Product Type | : | Sensing cable |
| Range | : | Leak Detection |
| Sensing Cable Length | : | 1,000' (300 m) |
| Warranty | : | 2 years |

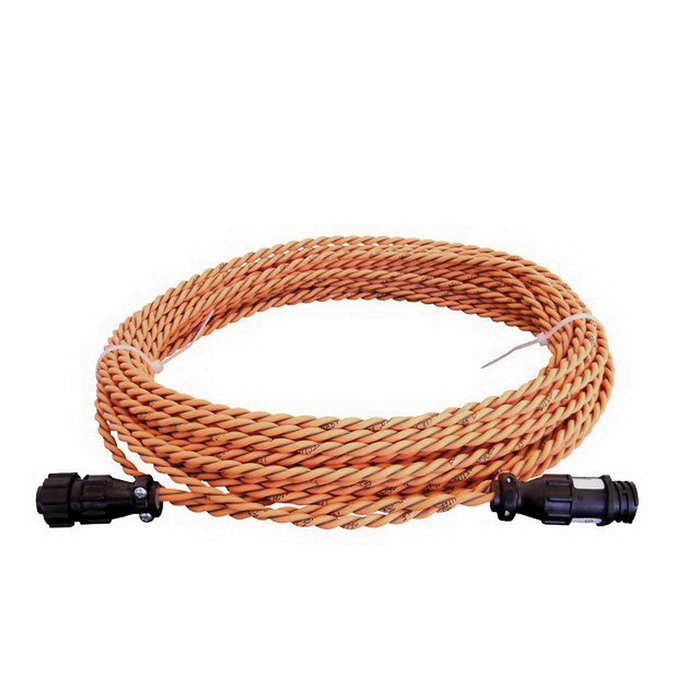

Sensing cables are designed for use with zone and distance read panels. The sensing cables detect the presence of detectable liquid and send a signal to the panel. The panel generates an alarm and pinpoints the location of the leak or spill along the cable's length. Sensing cables are designed for high accuracy and maximum reliability. SC water detection cable senses the presence of water or other conductive fluid. It also bridges lengths of SC detection cable in areas where sensing is not required. All cables are highly flexible, durable and kink-resistant. They lie flat after installation and are abrasion resistant. The cables are plenum rated and UL Listed, making them ideal for use under raised floors and areas where plenum rated cable is required. Choose a pre-specified cable length or a custom length for your convenience and installation flexibility.
- Strong, durable, and abrasion resistant
- Expansion with mating end connectors, easy installation
- Installation flexibility - pre-measured and custom lengths with pre-installed end connectors
- Plenum rated and UL listed
- Highly accurate alarm notification, fewer false alarms
- Application versatility - SC cables detect the presence of specific fluids
