| Application | : | Building Automation Systems |
| Current Measurement Accuracy | : | ±2% of F.S. above 6 A |
| Current Measurement Range | : | 0 - 60 A |
| Current Sensor type | : | Current Transducer, AC |
| Electrical Wiring Size | : | 24 - 14 AWG (0.2 - 2.1 mm²) |
| Measurement Type | : | AC Current |
| Model | : | H922060A |
| Monitored Frequency Range | : | 50 - 60 Hz |
| Monitored Wire Size | : | 0.8" (21 mm) |
| Mounting | : | Split Core |
| Operating Humidity | : | 10 - 90% RH, non-condensing |
| Operating Temperature | : | 5 - 140 °F (-15 - 60 °C) |
| Output Specifications | : | 0 - 5 VDC |
| Outputs | : | Analog output |
| Product Certification | : | UL | CE |
| Product Type | : | Sensor |
| Range | : | HX22 Series |
| Relay Coil Voltage | : | None |
| Relay Contact Ratings | : | None |
| Relay Poles/Throw | : | None |
| Warranty | : | 5 years |

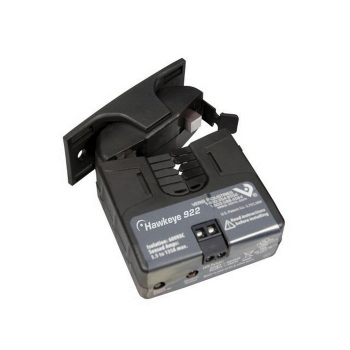

The Hawkeye 922060A provide accurate load trending information with a proportional 0 to 5 VDC output signal. Slide-switches provide easy field selection of monitored amperage range without jumpers.
- Self-powered analog current sensor simplifies installation
- No external power required for sensor
- Self-gripping, split-core design for fast retrofit installation, no need to remove conductor
- Factory calibrated ranges for increased flexibility and resolution
- No jumpers on unit, reduces installation error
- Induced from monitored conductor sensor power
